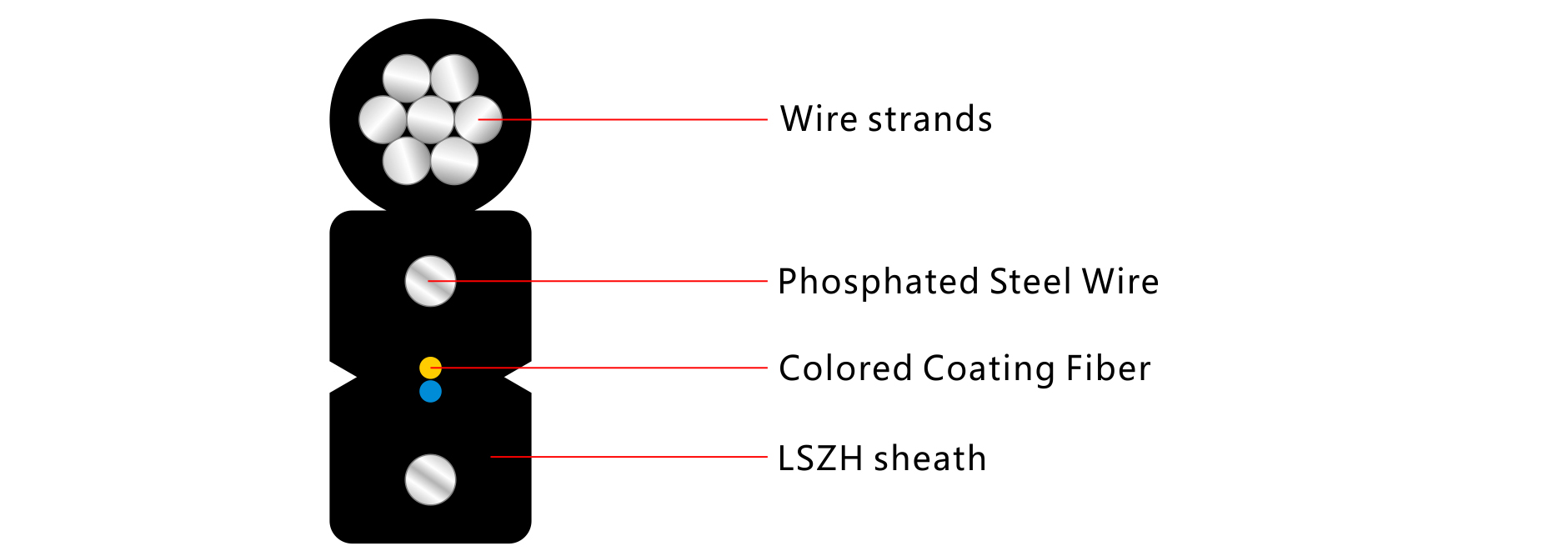

Structure Design

Description

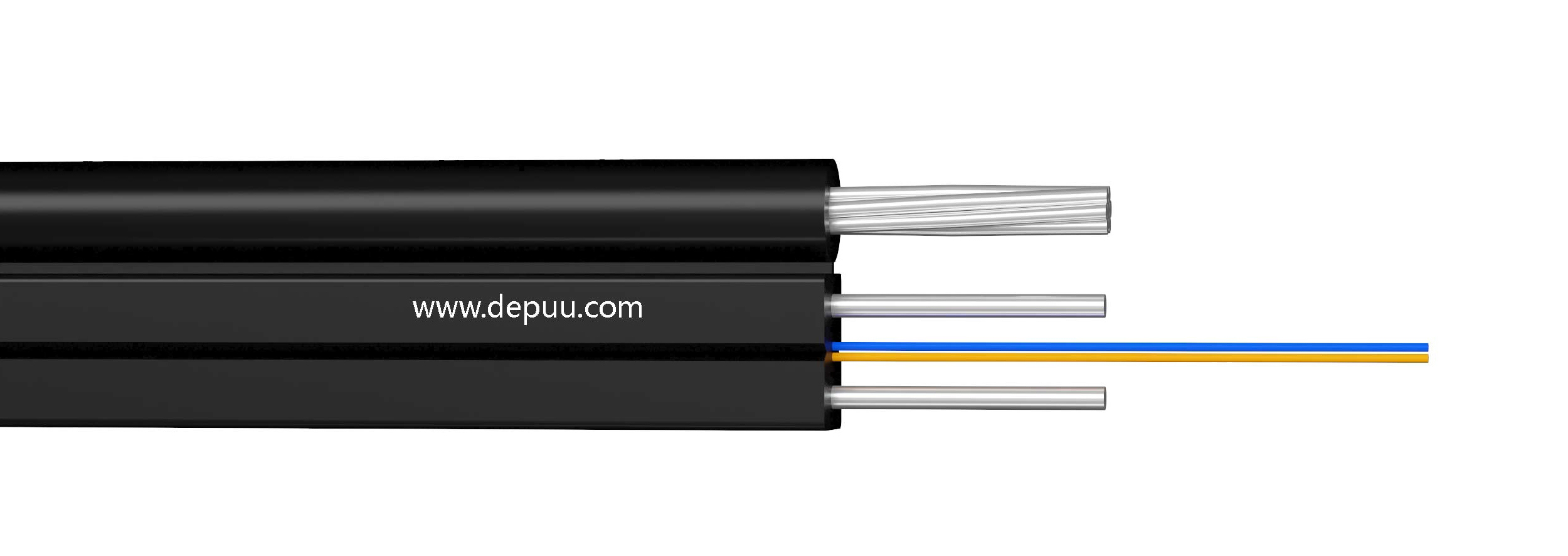

The typical self-supporting bow-type drop fiber optic cable consists of GJYXFCH/GJYXCH cable and an additional strength member with
stranded steel wire（The Diameter is 0.33mm*7）.

Application
Outdoor;Self-supporting
1，High performance optical network operating.
2，High speed optical routes in buildings (FTTX).
3，All types of fiber cables with different structures.

Temperature Range
Operating :-20℃ to 60℃
Storage :-20℃ to 60℃

Characteristic
1，Novel groove design, easily strip and splice,simplifiedinstallation and maintenance, higher tensile strength.
2，Suitable as cable extending from outdoor (as aerial cable)to indoor.
3，Low smoke, zero halogen and flame retardant sheath,environment-friendly, good safety.

Standards
Comply with standard YD/T1258.2-2003 and IEC 60794-2-10/11

Note
1. Only a part of FTTH Drop Cable are listed in the table. More can be produce as required.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

package
