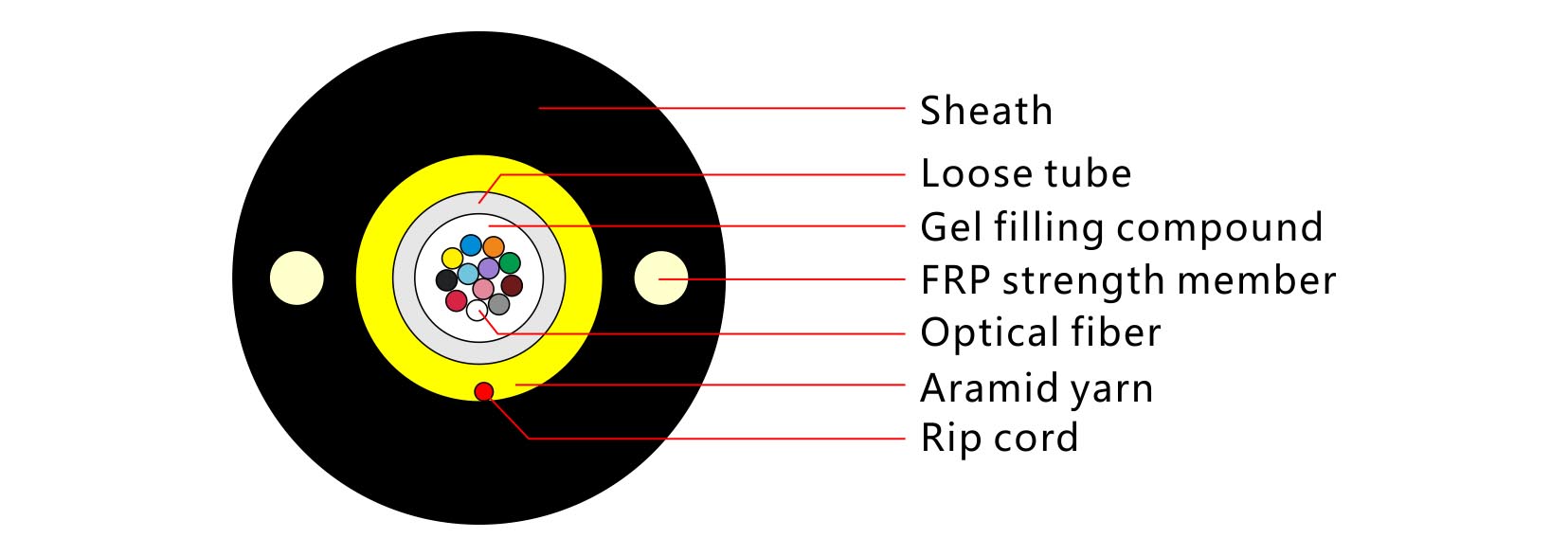

Structure Design
Description

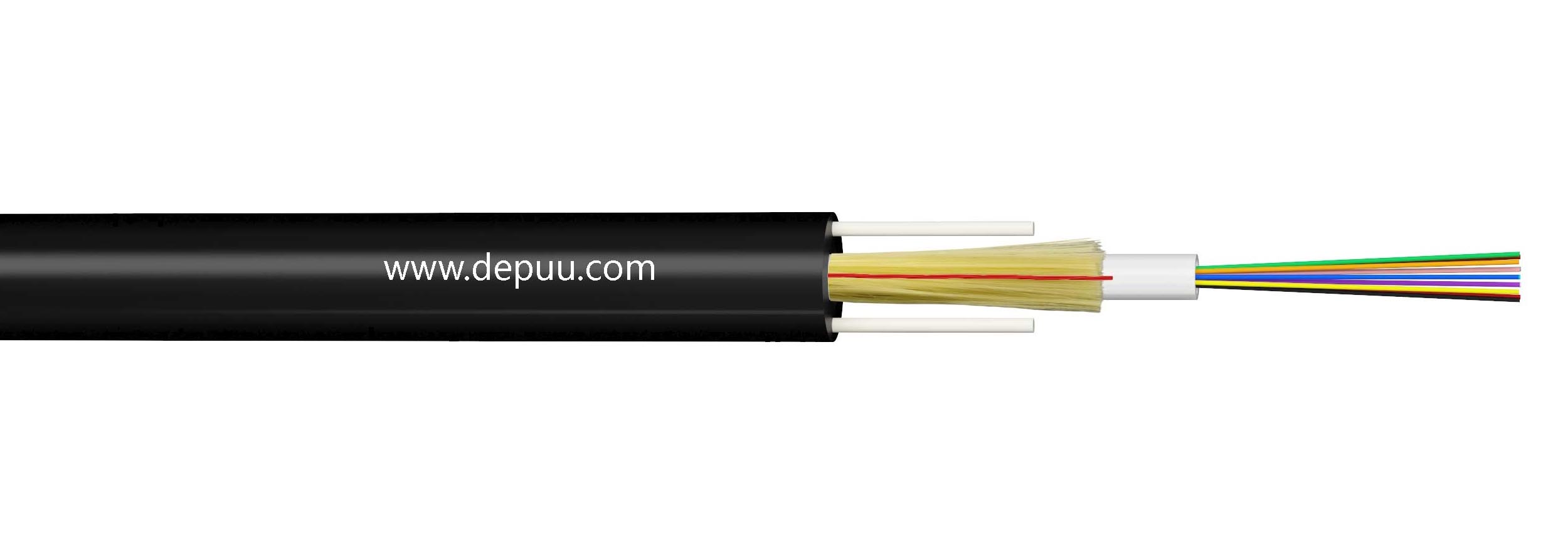

Uni-Tube All Dielectric Aerial Drop cable is specifically designed for Fiber-to -the-Subscriber applications. It is a round, all dielectric cable ideally suited for self-supporting drop-type installations as well as in lashed or conduit builds. The overall glass yarn strength member is used for additional mechanical protection.
Application
Conduit, Duct, Aerial/Lashed,FTTx, Access.
Features
Small size, Low cost. Up to 24 fibers.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel FRP wire and overall glass yarn to enhance tensile resistant. and protect cable from mechanical damage.
Designed for use with inexpensive attachment hardware. Self-supported no messenger needed.
Standards
IEC 60794, ITU-T G.652
Optical Characteristics
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm |
| Attenuation(+20℃) | 850 nm |
|
| ≤3.0 dB/km | ≤3.3 dB/km |
| 1300 nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km |
| 1310 nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
|
| 1550 nm | ≤0.22 dB/km | ≤0.23 dB/km |
|
|
| Bandwidth | 850 nm |
|
| ≥500 MHz·km | ≥200 Mhz·km |
| 1300 nm |
|
| ≥500 MHz·km | ≥500 Mhz·km |
| Numerical Aperture |
|
| 0.200±0.015 NA | 0.275±0.015 NA |
| Cable Cut-off Wavelength λcc | ≤1260 nm | ≤1450 nm |
|
|
Product Specification
| Fiber count | Nominal Diameter(mm) | Nominal Weight(kg/km) | Allowable Tensile Load(N) | Allowable Crush Resistance(N/100mm) |
| Short term | Long term | Short term | Long term |
| 2~12 | 6.5 | 35 | 1800 | 800 | 2200 | 100 |
| 12~24 | 7 | 40 | 1800 | 800 | 2200 | 100 |
Package
