All Dielectric Self-supporting Unitube Aerial Cable (ASU80)

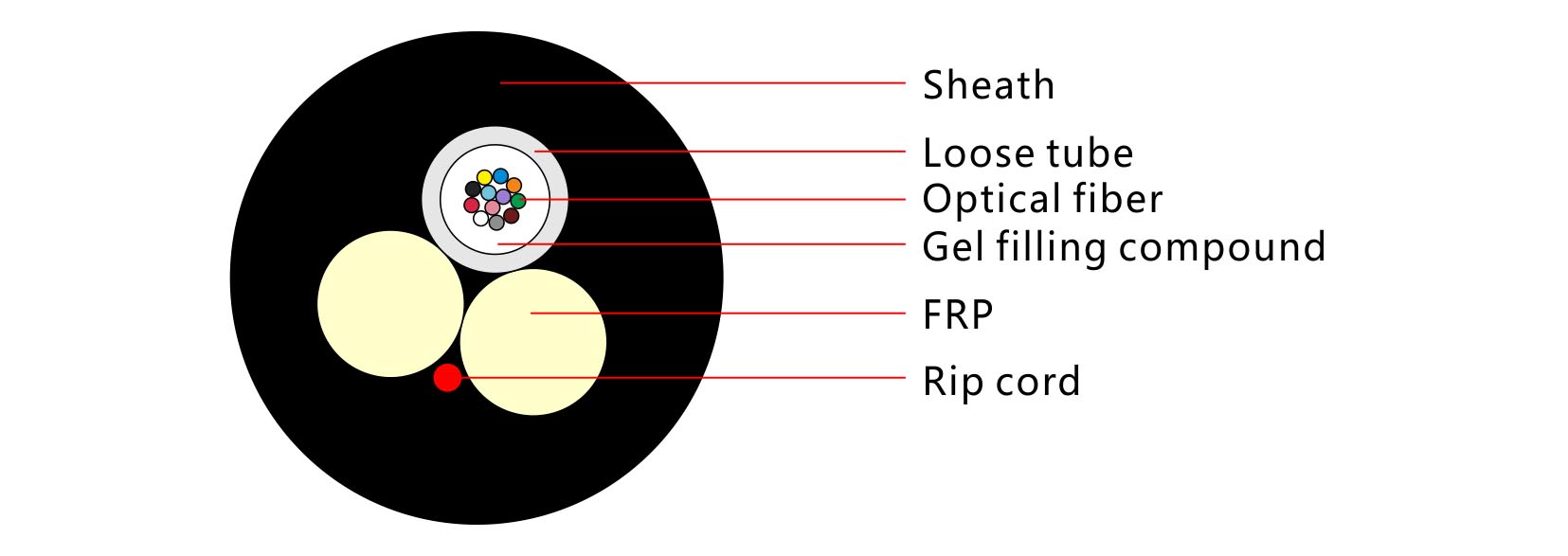

Structure Design

Description

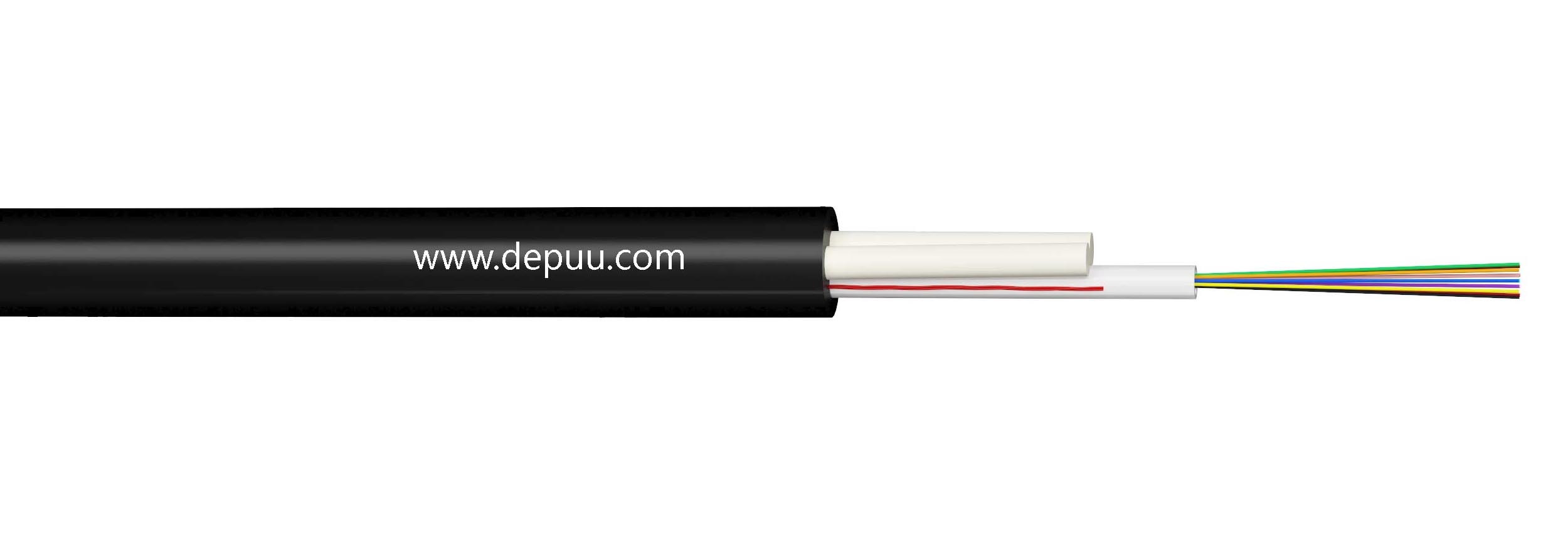

Aerial Self-Supported ASU Fiber Optic Cable (for span 80m) has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic(FRP) elements are placed on the two sides.The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication.

Applications

Installation on medium and long distance LAN backbones, where a compact and robust cable is required.

Features

Easy installation

Light weight, small diameter and most economical tan ADSS cables

Span 80 to 100 meters

Fiber Core: 2-12 Core is available

Fiber Type: G652D/G655/G657A1/A2

Fiber Optical Technical Parameter

No.	Items		Unit	Specification
No.	Items		Unit	G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
1	Mode Field Diameter	1550nm	μm	10.4±0.5
2	Cladding Diameter		μm	125±0.5
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentrically Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentrically Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.36
9	Attenuation(max.)	1550nm	dB/km	≤0.22

ASU 80 Fiber Optic Cable Technical Parameter

Items		Specifications
Fiber Count		12 fibers
Span		80m
		250±15μm
Colored Coating Fiber Dimension

		Green、Yellow、White、Blue、Red、Violet、Brown、Pink、Black、Grey、Orange、Aqua
Color
Cable OD(mm)		6.5mm±0.2
Cable weight		40kg/km
Loose Tube	Dimension	2.1mm
	Material	PBT
	Color	White
Strength Member	Dimension	2.0mm
	Material	FRP
Outer Jacket	Material	PE
	Color	Black

Mechanical and Environmental Characteristics

Items	Unit	Specifications
Tension（Long Term）	N	300
Tension（Short Term）	N	800
Crush（Long Term）	N/100mm	500
Crush（Short Term）	N/100mm	1000
Installation Temperature	℃	-0℃ to + 60℃
Operating Temperature	℃	-20℃ to + 70℃
Storage Temperature	℃	-20℃ to + 70℃

TEST REQUIREMENTS

Approved by various professional optical and communication product institution, Depuu also conduct various in-house testing in its own Laboratory and Test Center. She also conduct test with special arrangement with the Chinese Government Ministry of Quality Supervision & Inspection Center of Optical Communication Products (QSICO). Depuu possess the technology to keep its fiber attenuation loss within Industry Standards.

The cable is in accordance with applicable standard of cable and requirement of customer. The following test items are carried out according to corresponding reference. Routine tests of optical fiber.

Mode field diameter	IEC 60793-1-45
Mode field Core/clad concentrically	IEC 60793-1-20
Cladding diameter	IEC 60793-1-20
Cladding non-circularity	IEC 60793-1-20
Attenuation coefficient	IEC 60793-1-40
Chromatic dispersion	IEC 60793-1-42
Cable cut-off wavelength	IEC 60793-1-44

Tension Loading Test
Test Standard	IEC 60794-1
Sample length	No less than 50 meters
Load	Max. installation load
Duration time	1 hour
Test results	Additional attenuation:≤0.1dB No damage to outer jacket and inner elements

Crush/Compression Test
Test Standard	IEC 60794-1
Load	Crush load
Plate size	100mm length
Duration time	1 minute
Test number	1
Test results	Additional attenuation:≤0.05dB No damage to outer jacket and inner elements

Impact Resistance Test
Test Standard	IEC 60794-1
Impact energy	6.5J
Radius	12.5mm
Impact points	3
Impact number	2
Test result	Additional attenuation:≤0.05dB

Repeated Bending Test
Test Standard	IEC 60794-1
Bending radius	20 X diameter of cable
Cycles	25 cycles
Test result	Additional attenuation: ≤ 0.05dB No damage to outer jacket and inner elements

Torsion/Twist Test
Test Standard	IEC 60794-1
Sample length	2m
Angles	±180 degree
cycles	10
Test result	Additional attenuation:≤0.05dB No damage to outer jacket and inner elements
Temperature cycling Test
Test Standard	IIEC 60794-1
Temperature step	+20℃ →-40℃ →+85℃→+20℃
Time per each step	Transition from 0℃ to -40℃:2hours; duration at -40℃:8 hours; Transition from -40℃ to +85 ℃:4hours; duration at +85℃:8 hours; Transition from +85℃ to 0℃:2hours
Cycles	5
Test result	Attenuation variation for reference value (the attenuation to be measured before test at +20±3℃) ≤ 0.1dB/km
Water penetration Test	-
Test Standard	IEC 60794-1
Height of water column	1m
Sample length	1m
Test time	1 hour
Test result	No water leakage from the opposite of the sample
