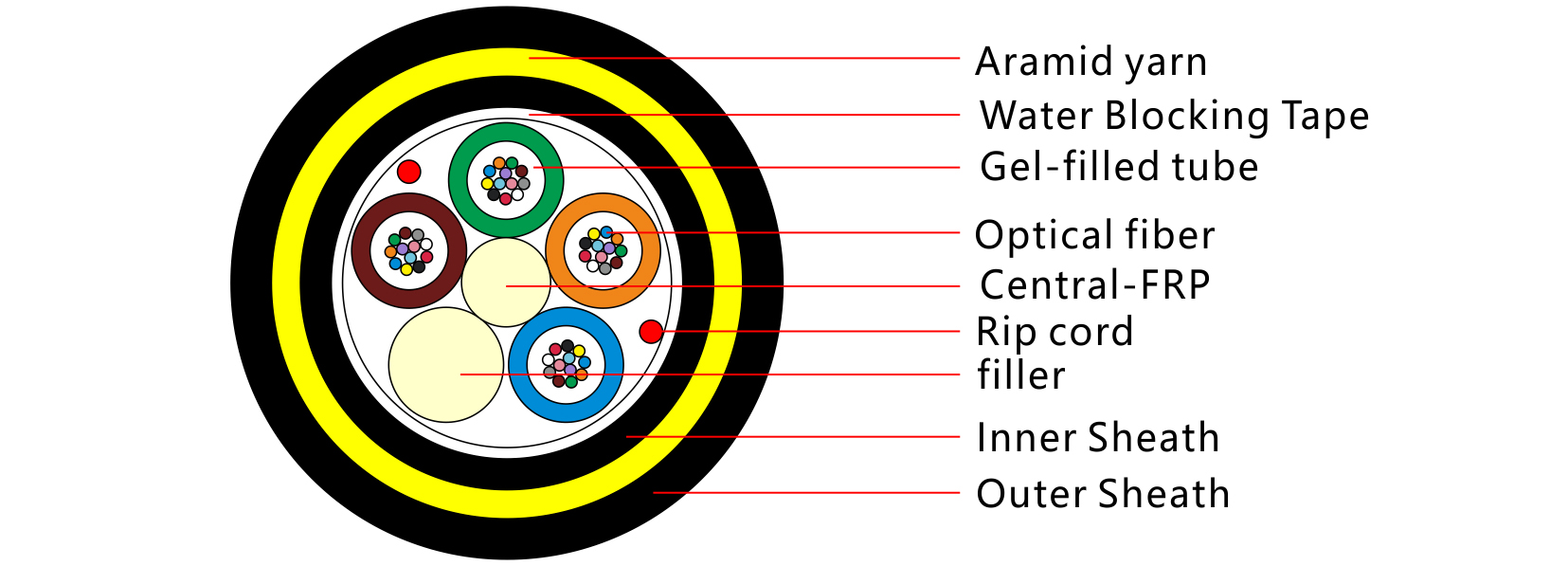

Structure Design

Description

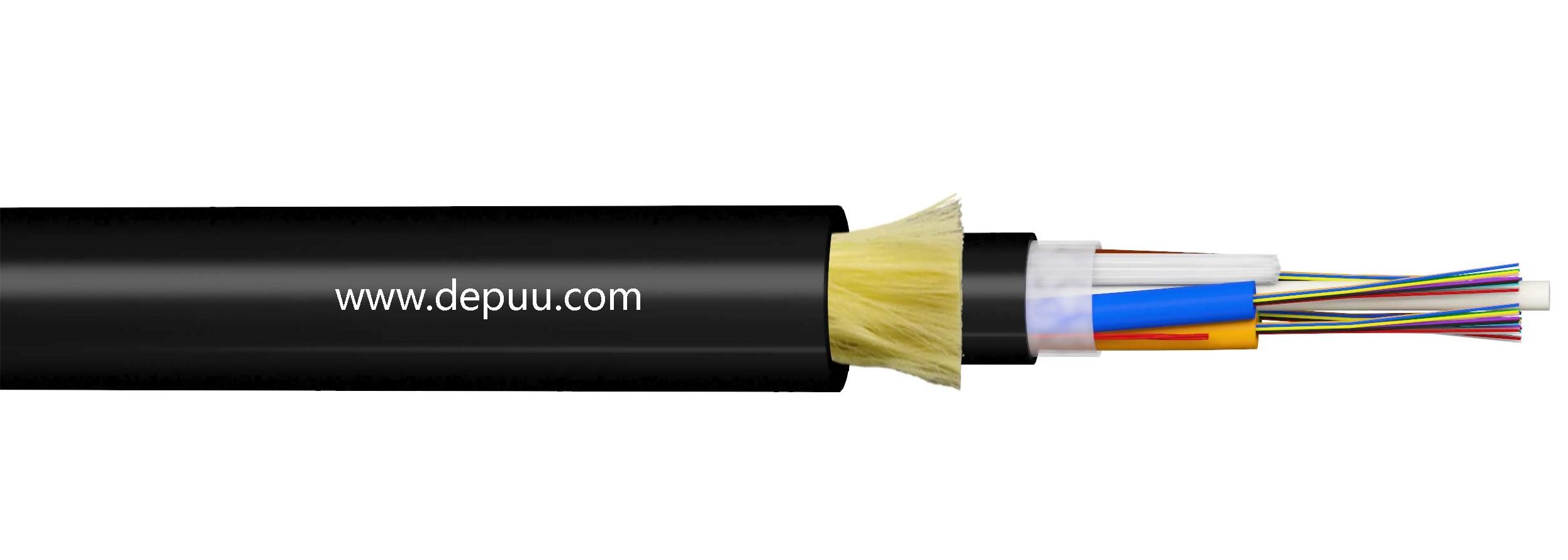

Double Jacket All-Dielectric Self-Supporting (ADSS) Optical Fiber Cable provides reliable self-support performance for up to 1500 meters. Each Long Span ADSS cable is custom engineered for optimum placement on utility towers and to operate under full weather load, ensuring safe reliable lifetime performance. For installation on high-voltage lines up to 275 KV, an optional track-resistant jacket prevents dry-band arcing damage. Fiber counts is available up to 288 fibers.

Application

1. Self-support Aerial installation;

2. Fiber-to-the-X networks;

3. Underground duct.

Features

1. Up to 288 fibers;

2. Enhanced technology enables efficient, cost-effective large-scale welding;

3. Customized design by application;

4. Water blocking technology makes the cable core more process-friendly;

5. Increase bandwidth and carrying capacity in high-density applications;

6. High-efficiency, low-cost large-scale welding, which can simplify installation and save labor costs;

7.Depending on sag and load conditions, excellent performance is suitable for spans up to 1500m.

Standards

IEEE 1222, IEC 60794-4-20, ANSI/ICEA S-87-640, TELCORDIA GR-20, IEC 60793-1-22, IEC 60794-1-2, IEC 60794

Product Parameter

Package
