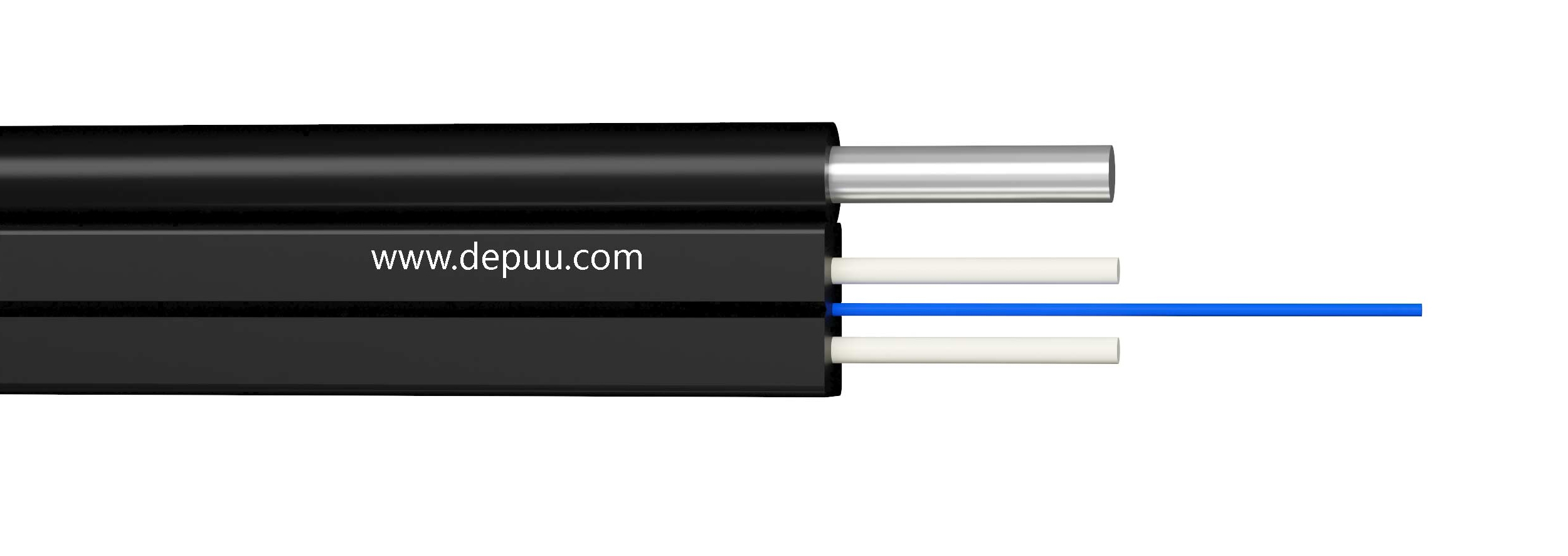

Self-supporting Bow-type Drop Optical Cable(GJYXFCH/GJYXCH)

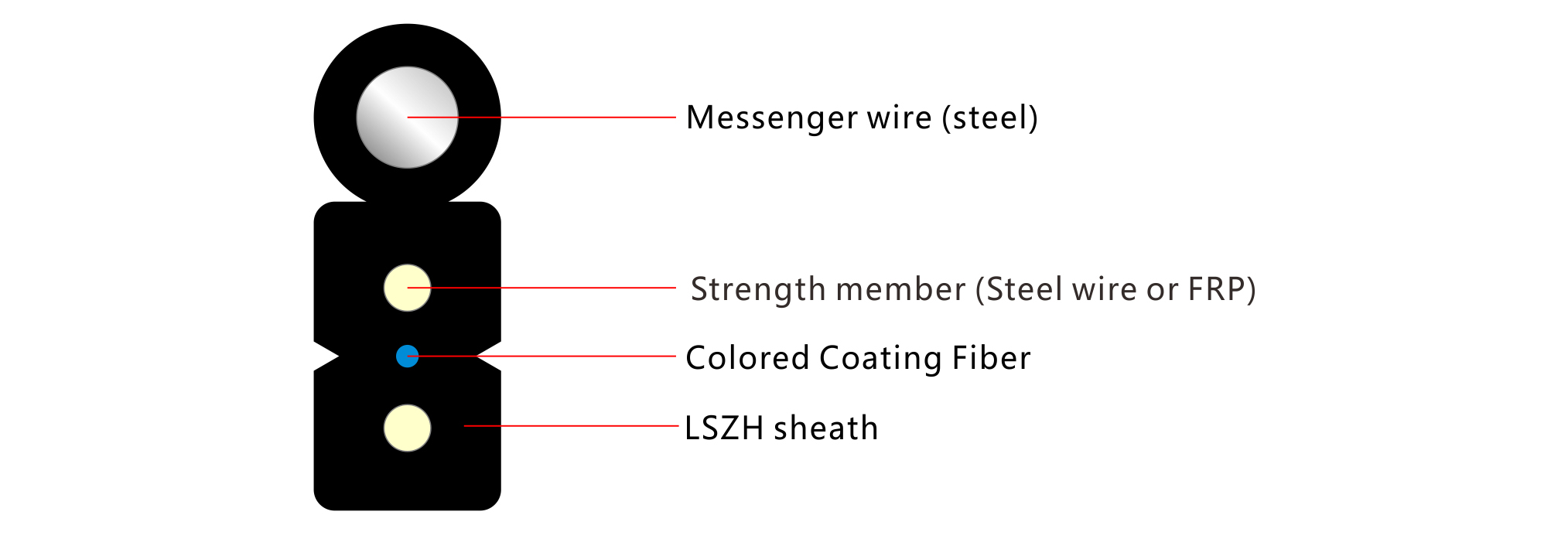

Structure Design


Description


FTTH outdoor fiber optic cable are used inside buildings or houses. In the center of the cable is the optical communication unit, with the two parallel non-metical enhanced FRP/Metal/KFRP as the strength member, and surrounded with the LSZH jacket.

Fiber Type: G652D, G657A1, G657A2 available

Fiber Count: 1-12 Cores

Application

●  Internal FTTH applications horizontal and riser.
●  Clipping to surfaces including skirting boards.
●  Short distance external use with black LSZH jacket.

Main Features

1. GJYXFCH/GJYXCH Bow Type Drop Cable adopts the slight bending resistant fiber B6, ensure data transmission.
2. Small size, light weight, simple structure, easy to strip for its special groove design and no need any tool, easy to install.
3. Two parallel phosphated steel wires as strength members have excellent crush and tensile resistance.
4. Self-supporting steel wire strength component withstand most part of tension.
5. Low smoke, non-halogen flame retardant outer sheath material.

Temperature Range

Operating Temperature: -20~+ 50℃.

Standard

Comply with standard YD/T 1997-2009, ICEA-596, GR-409, IEC 60794.

Packing

Our packaging box can not only achieve 7 layers but also can bear the weight of two adults,The picture below is sent by our customer.

 Technical Parameter

P/NStrengthen memberFiber count
(F)
Nominal size
(mm)
Nominal weight
(kg/km)
Max tensile strength
Long/short term (N)
GJYXFCH-1G657A1-GGFRP1(2.0±0.1)*(5.0±0.3)18.9300/600
GJYXFCH-2G657A1-GGFRP2(2.0±0.1)*(5.0±0.3)18.9300/600
GJYXFCH-4G657A1-GGFRP4(2.0±0.1)*(5.0±0.3)18.9300/600
GJYXFCH-1G657A1-KKFRP1(2.0±0.1)*(5.0±0.3)18.9300/600
GJYXFCH-2G657A1-KKFRP2(2.0±0.1)*(5.0±0.3)18.9300/600
GJYXFCH-4G657A1-KKFRP4(2.0±0.1)*(5.0±0.3)18.9300/600
GJYXCH-1G657A1Steel wire1(2.0±0.1)*(5.0±0.3)21300/600
GJYXCH-2G657A1Steel wire2(2.0±0.1)*(5.0±0.3)21300/600
GJYXCH-4G657A1Steel wire4(2.0±0.1)*(5.0±0.3)213


Note

Only a part of FTTH Drop cables are listed in the table. Cables with other specifications can be inquired.

Cables can be supplied with a range of single mode or multimode fibers.
Specially designed Cable structure is available on request.

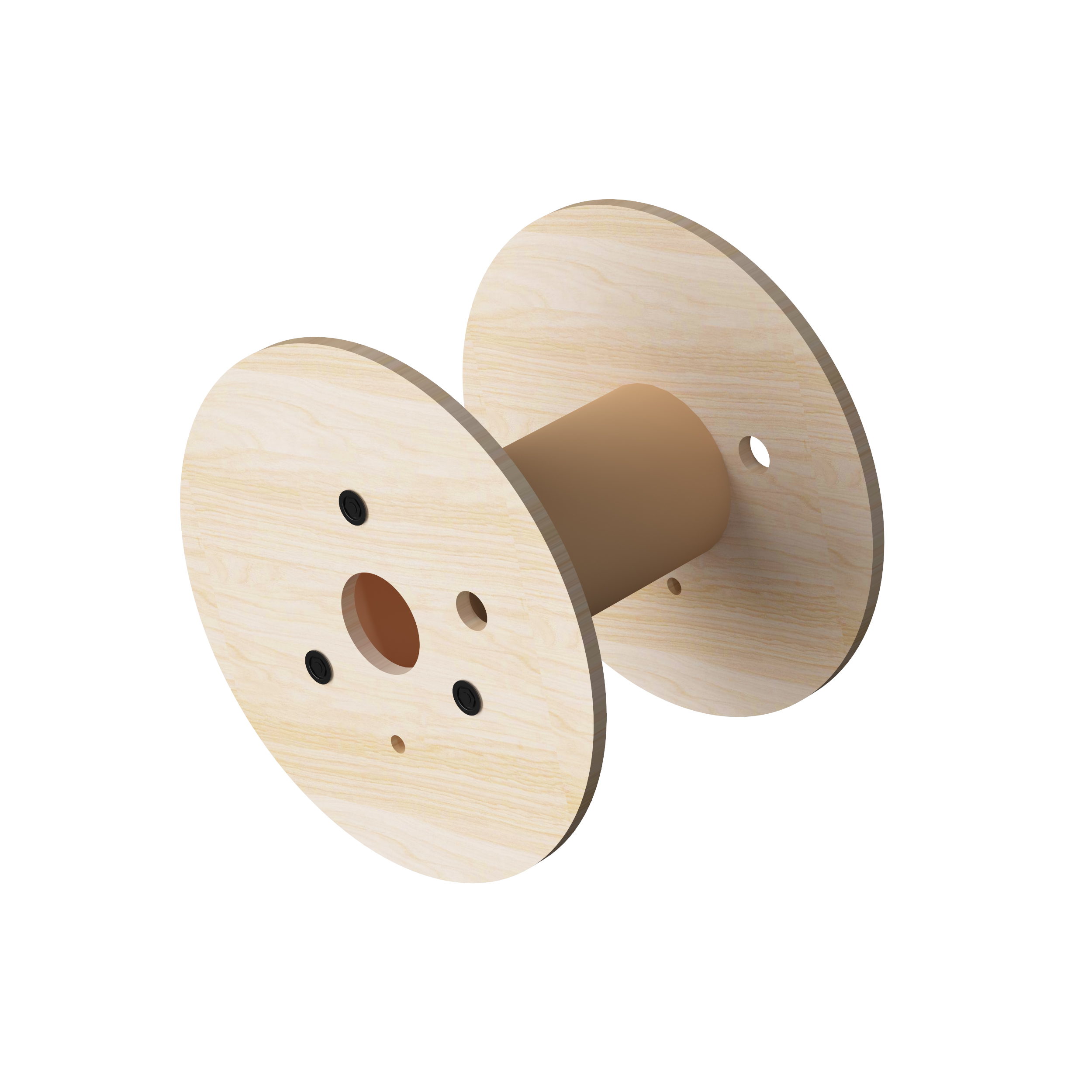

Package
