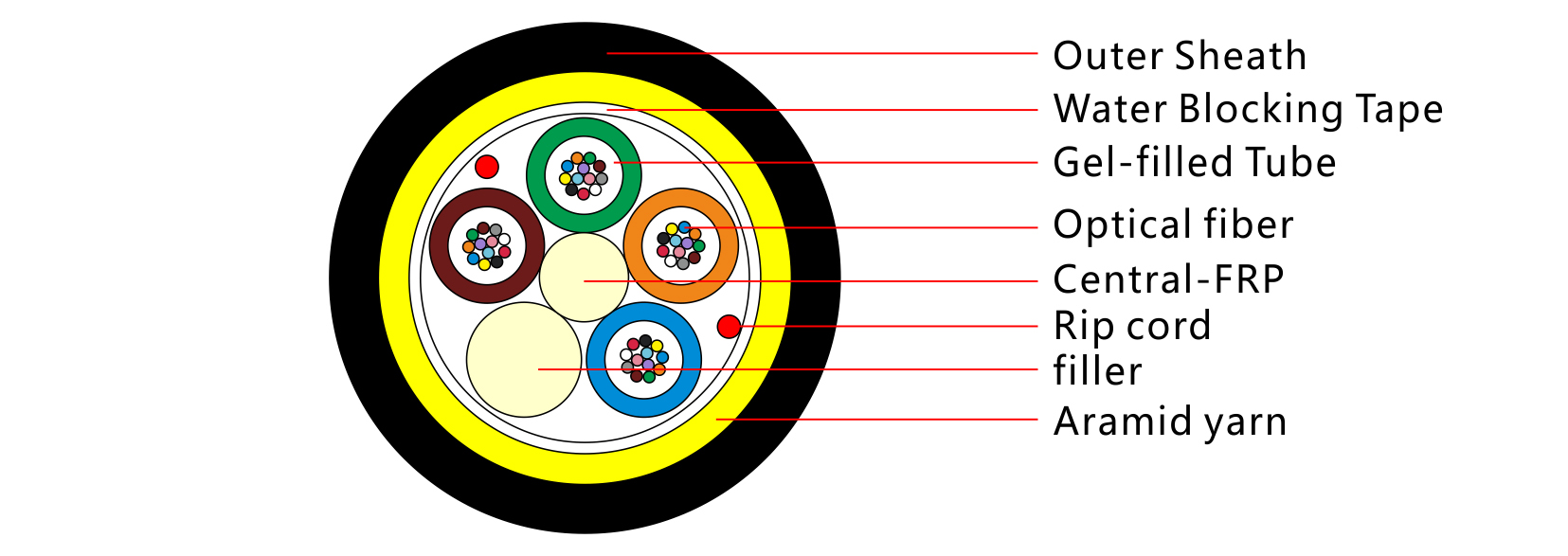

Structure Design

Description

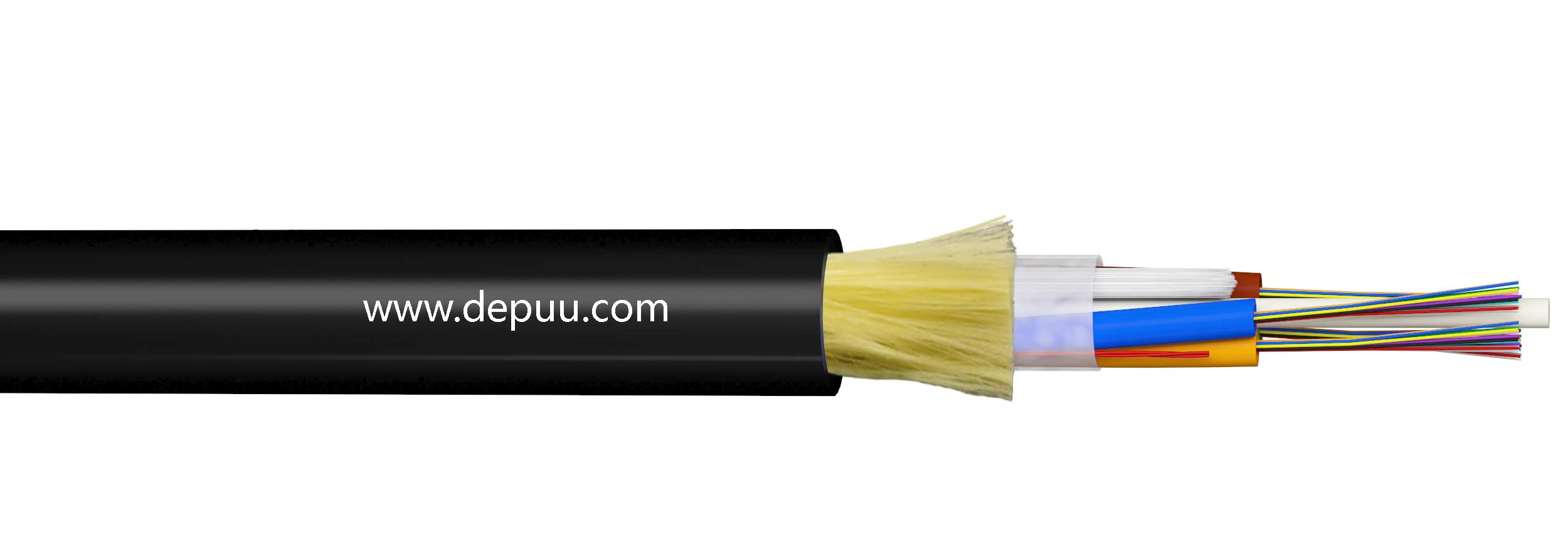

Mini-Span All-Dielectric Self Supporting (ADSS) fiber optic cable is designed for outside plant aerial and duct applications in local and campus network loop architectures. Mini-Span includes fiber counts up to 288 optical fibers and any type of combination of single-mode and laser-optimized multi-mode fibers with the cable.

Pole-to-Pole span lengths range from 50 m to over 150 m. Custom ADSS design options allow span lengths of over one mile (5,280 feet)

Application

Aerial,direct Buried,duct

Feature

1. Small outer diameter and high tensile resistance;

2. High modular of elasticity;

3. Small thermal expansion coefficient;

4. Excellent flexibility capability;

5. Outer Sheath Material: MDPE,HDPE Or AT;

6. Strength Member: Kevlar/Aramid Yarn;

7. Fiber Count: 2-288 Core is available;

8. Span Distance: 200M-1000M,can be Customized.

Standards

IEEE 1222, IEC 60794-4-20, ANSI/ICEA S-87-640, TELCORDIA GR-20, IEC 60793-1-22, IEC 60794-1-2, IEC 60794 standards.

Technical Parameter

Package
