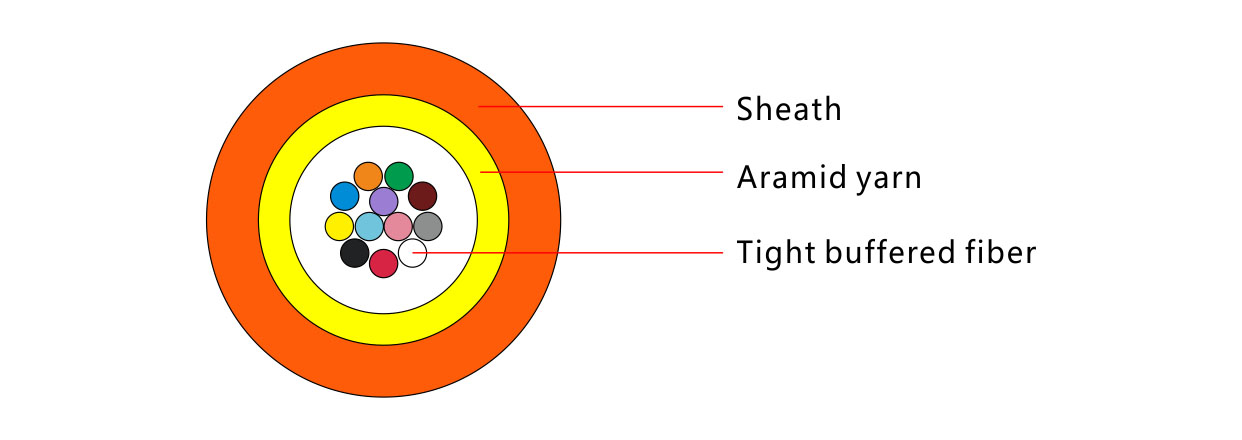

Structure Design
Description

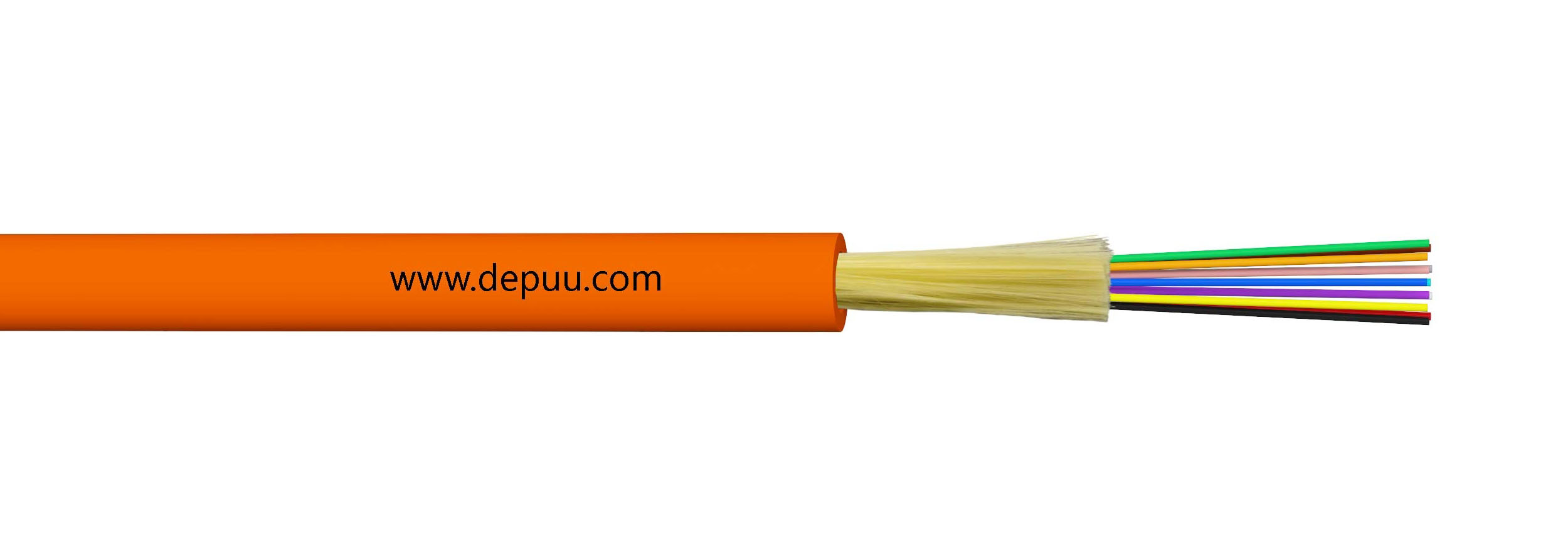

Indoor Bundle Fiber Optic Cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.
ApplicationIndoor Bundle Fiber Optic Cable has two primary applications. A majority of indoor cable is used in building wiring applications. Installed in walls, between floors, in plenum air handling ducts and under data center floors.
Features
1. Small diameter, lightweight, flame retardant, excellent strip ability
2. Low-attenuation, High flexibility
3. No need for a transition connector box or pigtail between tight
buffer fiber and cable, low cost with installation cause to it’s no need to clean the water-proofing ointment.
Technology Requisition
| Fiber core number | OD | weight | Tensile Loading Test | Repeated Bending | Crush Resistance Test |
| mm | kg/km | Short-tensile load | Long-tensile load | developments | static | N/100mm2 |
| N | N | mm | mm |
| 1 | 1.6 | 2.9 | 80 | 40 | 20D | 10D | 500 |
| 1 | 1.8 | 3.2 | 80 | 40 | 20D | 10D | 500 |
| 1 | 2 | 3.5 | 100 | 60 | 20D | 10D | 500 |
| 1 | 2.4 | 5 | 100 | 60 | 20D | 10D | 500 |
| 1 | 3 | 6.8 | 150 | 80 | 20D | 10D | 500 |
Package
