Structure Design

Description

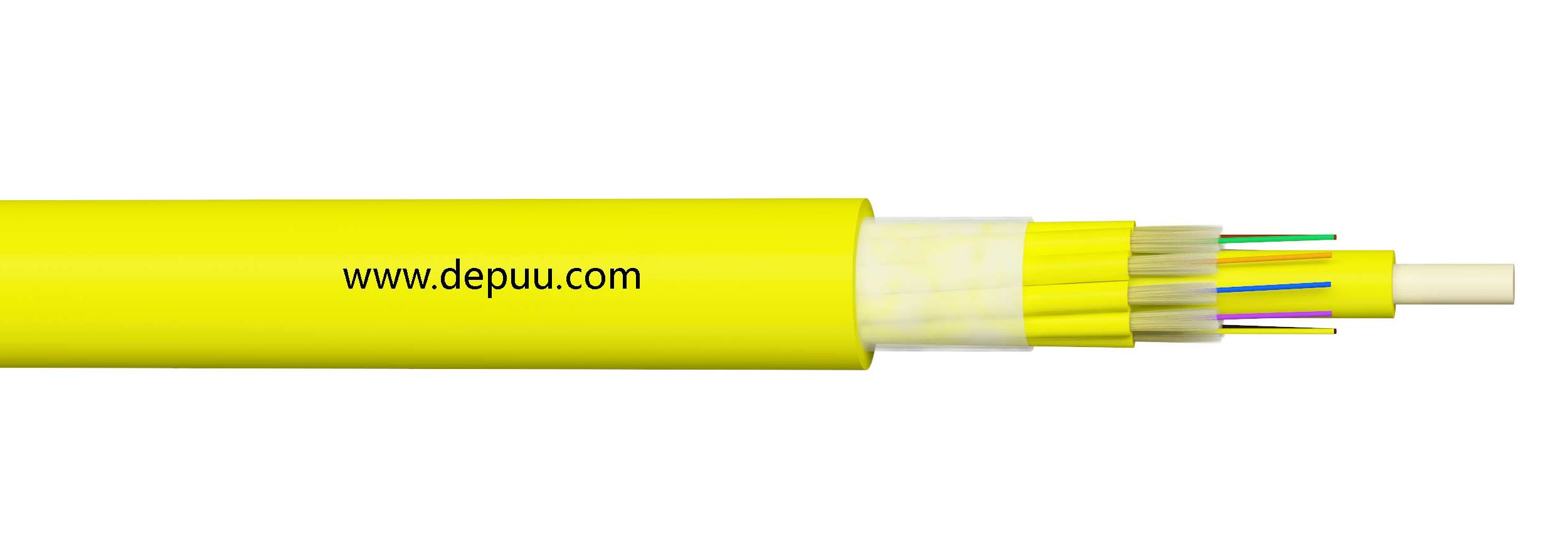

Indoor Multi-core Branch Optical Cable (GJBFJV)

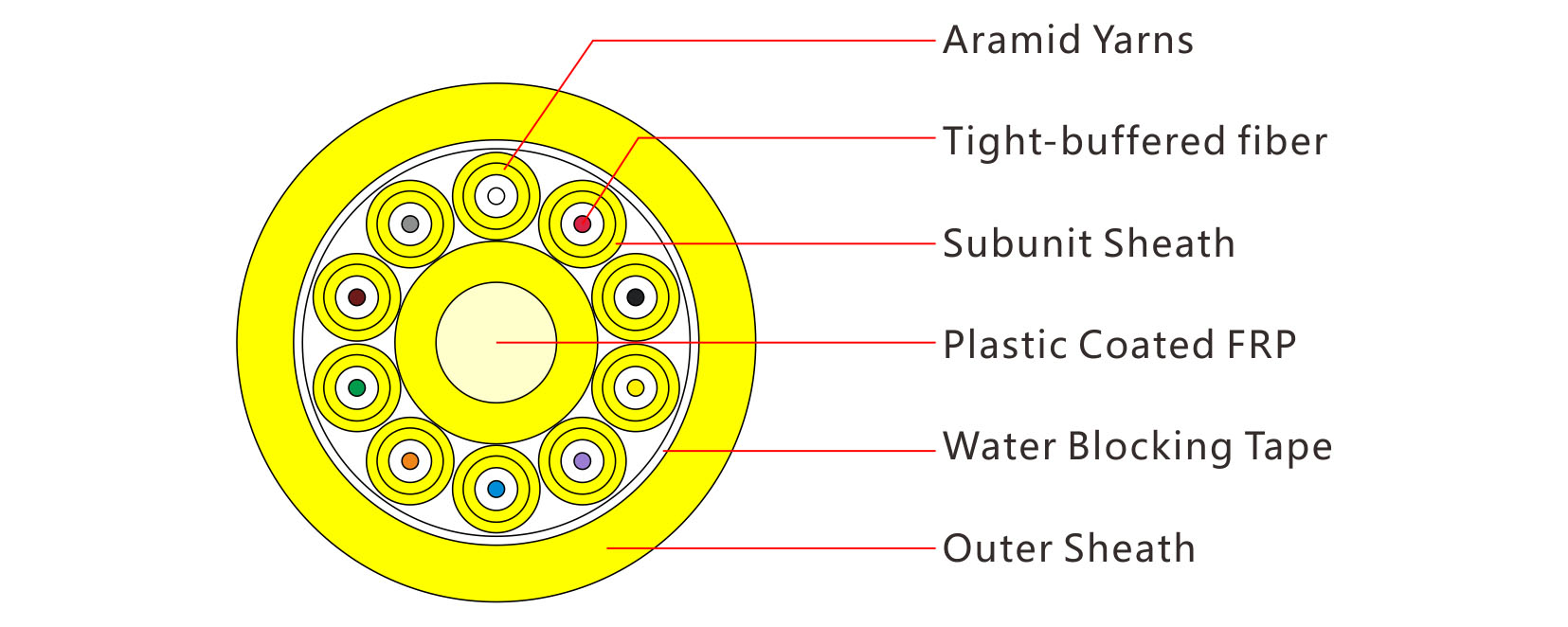

are made of several simplex optical cables （made of 900μm tight buffered fibre and aramid yarns) as optical sub-units. Sub-units are stranded around a non-metallic central strength member to form a cable core. Then a PVC sheath is extruded on the core.Other sheath materials are available on request.

Application

1. Used as access building cable;

2. Used as interconnect lines of equipment, and used in optical connections in optical communication rooms and optical distribution frames;

3. Indoor cabling;

4. Suitable for patch cord and pigtails, indoor distribution;

5. Distribution system cable.

 Technical Features

1. High tensile strength due to stranded structure and non metallic central strength member;
2. All dielectric design,applicable to lightning prone areas;
3. Anti-corrosion, water-blocking,

4. Flame-retardant and environment-friendly

Technology Requisition

Package
