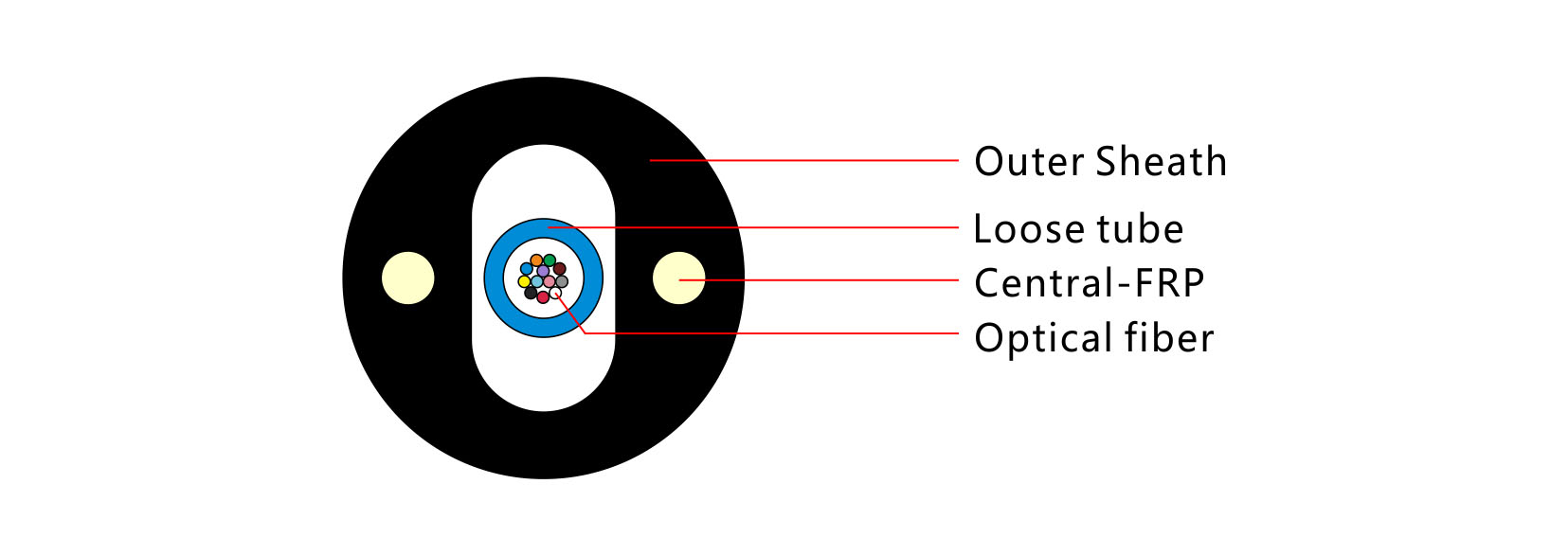

Structure Design
Description

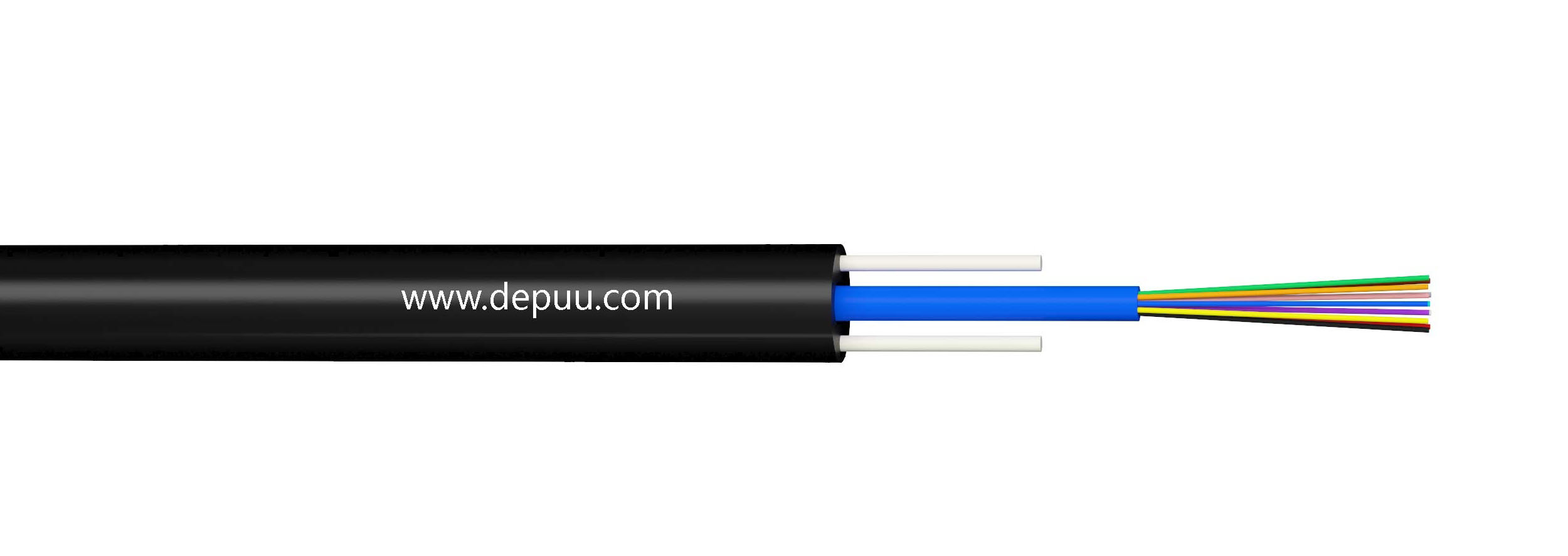

Indoor/outdoor fiber optical cables are made of low-smoke, halogen-free, flame-retardant materials. It can not only meet the flame-retardant requirements of indoor use, but also adapt to the needs of rigorous environments of outdoor.
Application
1. This fiber cable is applied in Duct, Aerial FTTx, Access installations.
2. Used in access network or as access cable from outdoor to indoor in customer premises network.
3. Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.
Features
1. Fiber type: G657A fiber, G657B fiber
2. Up to 24 fibers.
3. Uni-tube gel-filled construction for superior fiber protection.
4. Two parallel FRP wire to enhance tensile resistant and protect cable from mechanical damage.
5. Designed for use with inexpensive attachment hardware.
6. Self-supported no messenger needed.
7. Flame-retardant LSZH jacket
8. Small size, Low cost.
Product Parameter
| No. of fiber | 12-24 core |
| Fiber Model | G.657A1 |
| Strength Member | Material | FRP |
| Diameter（±0.05）mm | 1 |
| Loose Tube | Material | LSZH |
| Diameter（±0.05）mm | 1.4 |
| Thickness（±0.03）mm | 0.15 |
| The Max.Core NO./Tube | 12 |
| Outer Sheath | Material | LSZH |
| Thickness（±0.1）mm | 2 |
| Cable Diameter（±0.2）mm | 7 |
| Cable Weight（±3kg） | 36 |
| Min. bending radius | Without Tension | 10.0×Cable-φ |
| Under Maximum Tension | 20.0×Cable-φ |
| Temperature range | Installation | -20~+60 |
| （℃） | Transport&Storage | -40~+70 |
| Operation | -40~+70 |
| NO. | Item | Requirement |
| 1 | Allowable Tensile Strength | Short Term | 600 N |
| Long Term | 200 N |
| 2 | Allowable Crush Resistance | Short Term | 1000 (N/100mm) |
| Long Term | 300 (N/100mm) |

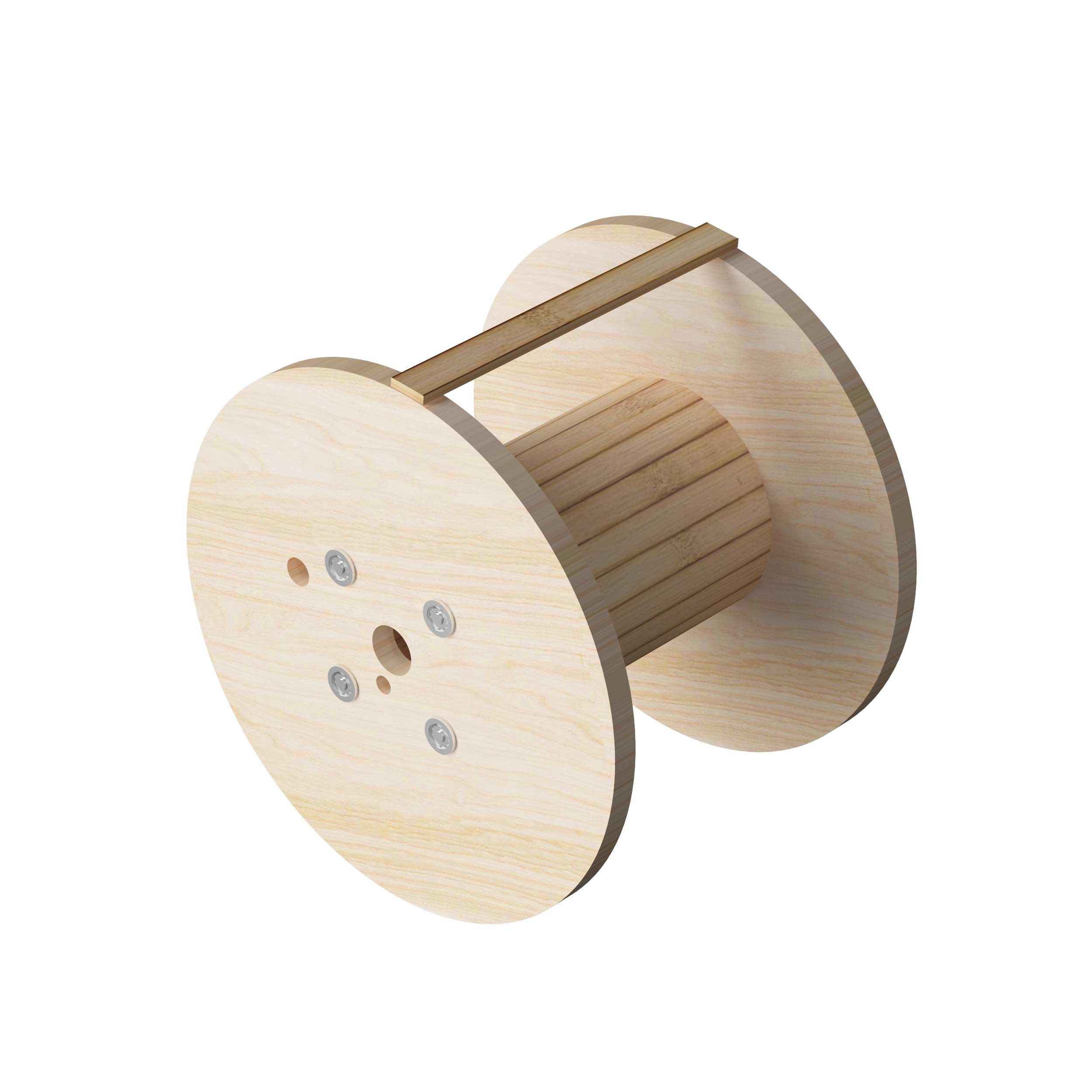

Package
