FIBER PATCHCORD & PIGTAIL

Description

Fiber patch cord normally consists of optical fiber cable and connectors at both ends of the cable, the pigtail is connector assembled at one end,low mating insertion loss and negligible attenuation for access. besides conventional connectors like LC, LC uniboot, SC, MU, ST, FC, E2000, special and new like CS, SN connector patch cord is also mature.IEC, EIA/TIA compliant.

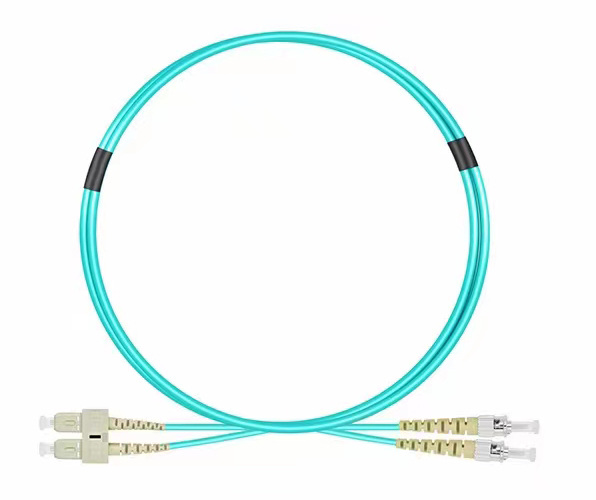

Product Show

Features of Fiber Patchcord & Pigtail

• Precision zirconia ferrules

• Standard or custom configurations

• Multimode and single-mode options

• Low-back reflection and insertion loss

Applications of Fiber Patchcord & Pigtail

• Data centers

• Ethernet applications

• FTTH applications

• Backbone, horizontal and riser applications

• Video, data and voice services

• Test equipment applications

Standard Compliance of Fiber Patchcord & Pigtail

• IEC 61754 series compliant

• Qualified to Telcordia GR-326-Core

• Reach, RoHS and SvHC compliant

Specification

Constructions	Descriptions
Fiber Count	Simplex or Duplex
Fiber Mode	Single mode: 9/125um, OS2/G657 Multimode: 50/125um, OM2, OM3, OM4 62.5/125um, OM1
Fiber Brand	Corning SMF-28® Ultra optical fiber, or ClearCurve bend insensitive optical fiber; Corning ClearCurve multimode optical fiber.
Cable Dimension	0.9mm, 2.0mm, 3.0mm or customized
Cable Jacket Ratings	Low Smoke Zero Halogen (LSZH) Riser (OFNR) Plenum (OFNP)
Cable Jacket Color	OS2/G657: Yellow OM1:Orange OM3: Aqua; OM4: Aqua / Magenta or Customized
Connector Type	LC, MU, SC, FC, ST, MTRJ, SMA, or others required
Physical Contact	APC, PC, UPC
Connector Color	LC, SC: Green for APC, Blue for UPC, Grey for Multimode, Aqua for OM3, Aqua or Magenta for OM4, or Customized FC, ST, SMA: Metal MTRJ: Black
Boot Color	White/Green/Black/Aqua/Magenta/Grey/ Customized
Operating Temperature	-20 °C ~ +70 °C
Storage Temperature	-40 °C ~ +85 °C

Mechanical Data

Fiber Count	OD(mm)	Nominal	Max.Tension(N)		Max.Crushing Resistance(N/100mm)
Fiber Count	OD(mm)	Weight (kg/km)	Short Term	Long Term	Short Term	Long Term
Simplex 1.6	1.6±0.2	2.6	80	40	500	100
Simplex 2.0	1.9±0.2	4.5	100	60	500	100
Simplex 3.0	2.8±0.2	7.5	100	60	500	100
Duplex 1.6	3.4±0.2x1.6±0.2	5.3	80	40	500	100
Duplex 2.0	4.0±0.2 x1.9±0.2	8.7	200	100	500	100
Duplex 3.0	5.8±0.3 x2.8±0.3	14.8	200	100	500	100
