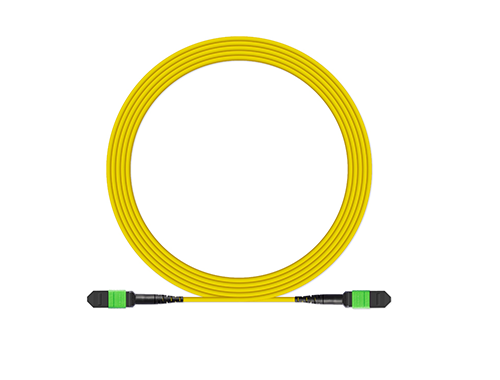

MTP/MPO TRUNK CABLE

Description

MTP®/MPO trunk cabling connects MTP®/MPO modules together as a permanent link. They facilitate rapid deployment of high-density backbone cabling in data centers and other high-density fiber environments, reducing network installation or reconfiguration time and cost. Its efficient plug-and-play structure greatly reduces the initial installation and routine maintenance costs. Pre-terminated trunk cables can also be used with plug-and-play modules or MTP®/MPO connector panels to achieve multi-level connection. Pre-terminated trunk cable can also be extended by MTP®/MPO panel with the plug-and-play module. They are used to interconnect module cassettes, panels or ruggedized MTP®/MPO fanouts, spanning MDA, HDA and EDA zones.

Show

Specifications

Construction	Description
Fiber Count	4-384 Fibers
Fiber Mode	Single mode: OS2/G657 9/125um Multimode: OM3(50/125um); OM4(50/125um)
Fiber Brand	Corning SMF-28® Ultra optical fiber Corning ClearCurve® multimode fiber
Cable Jacket Ratings	Low Smoke Zero Halogen (LSZH) Riser (OFNR) Plenum (OFNP)
Cable Jacket Color	OS2/G.657: Yellow OM3: Aqua OM4: Aqua/Magenta or Customized
Polarity	Type A, Type B, Type C (TIA-568.3-D)
Connector Ferrule	12F/16F/ 24F/32F/48F
Connector Ferrule Brand	US Conec, HANKUSAN, Nissin
Connector Type	Male; Female
Connector Color		SM(APC)	SM(PC)	OM3	OM4	Or
	Low loss	Yellow	Yellow	Aqua	Magenta	Customized
	Standard	Green	Blue	Aqua	Magenta
Connector Boot Color	Green/Black/Red/Gray or Customized
Pulling eye	Customized
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C

Technical Specification

Optical Properties	Single mode	Multimode
Insertion Loss (dB)	Low loss≤ 0.35 (Typical:≤ 0.25 )	Low loss≤ 0.35 (Typical:≤ 0.2 )
Insertion Loss (dB)	Standard Loss≤0.75 (Typical:≤ 0.4 )	Standard Loss≤ 0.6 (Typical:≤ 0.35 )
Return Loss (dB)	PC≥50; APC≥60	PC≥20; APC≥40
Durability	≤0.2 dB typical change, 50 matings
Wavelength (nm)	Single mode: 1310/1550, Multimode: 850/1300
Fiber Attenuation (dB/km)	Single mode: ≤0.35 at 1310nm, ≤0.2 at 1550nm Multimode: ≤2.3 at 850nm, ≤0.6 at 1300nm
Transmission Distance	OM4: 150m at 40/100G, 550m at 10G OM3: 100m at 40/100G, 300m at 10G
