Description
MPO/MTP Hydra cable assemblies is deployed inside plug and play cassette modules. It is used for multi-fiber to single-fiber splitting out interconnects. This solution is a 12-colored 0.9mm cable utilizing an MPO/MTP® connector on one end and generic connectors (such as LC, SC, FC, etc.) on the other end. They are available for purchase as a bundle with plug and play modules, MPO/MTP® Adapter Plates, and other solutions. It is fully configurable, available in 8/12/16/24 fibers versions as well as Multi-mode (Standard 50/125, 62.5/125, BI 10Gig 50/125) and Single-mode fiber types.

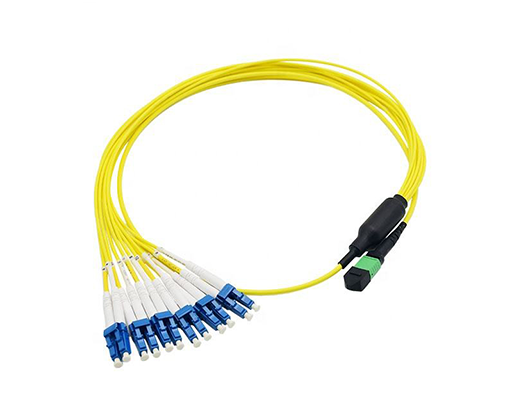

Product Show
Features
Low loss performance
Fiber count available in 8~24
Available in OS1, OS2, G.657A2, OM3, OM4 Fiber Grades – OM1 and OM2 available upon request
Option for LSZH, PVC or Hytrel loose tube
100% factory terminated and tested
Applications
Data Center Interconnect
Backbone Installations
Telecommunication Networks
Broadband/CATV Networks
LAN/WAN Premises
Standards Compliance
TIA/EIA-568.3-D and ISO/IEC 11801
IEC-61754 & EIA/TIA-604-5
NFPA 262 or IEC 60332
Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC
EN 50575
Comply with GR-1435-CORE, GR-2866-CORE, GR-326-CORE
Specifications
Construction | Description |
Fiber Count | 8~24 Fibers |
Fiber Mode | Single mode: OS2/G657 9/125um Multimode: OM4 50/125um, OM3 50/125um |
Fiber Brand | SMF-28® Ultra optical fiber Corning ClearCurve® multimode fiber |
Cable Jacket Ratings | PVC, LSZH, Hytrel |
Cable Jacket Color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua |
Polarity | A/B/C or Customized |
MTP/MPO | Ferrule | 12F/16F/ 24F |
Ferrule Brand | US Conec, HANKUSAN, Nissin |
Connector Type | MTP Female, Male; MPO Female, Male |
Connector Brand | US Conec MTP, Senko MPO, Nissin MPO, Sanwa MPO, FURUKAWA MPO |
Connector Color | Ferrule | SM(APC) | SM(PC) | OM3 | OM4 |
Low loss | Yellow | Yellow | Aqua | Magenta |
Standard | Green | Blue | Aqua | Magenta |
Boot Color | Green/Black/ or Customized |
Single-fiber connector | LC, SC, FC, etc. |
Operating Temperature | -20°C to +70°C |
Storage Temperature | -40°C to +85°C |
MPO / MTP Termination
Optical Properties | Single mode | Multimode |
Insertion Loss (dB) | Low loss | Standard | Low loss | Standard |
≤0.35(Typical:≤0.25) | ≤0.75(Typical:≤0.4) | ≤0.35(Typical:≤0.2) | ≤0.5(Typical:≤0.35) |
Return Loss (dB) | PC≥50; APC≥60 |
| PC≥20 |
|
Wavelength (nm) | 1310/1550 | 850/1300 |
Durability | ≤0.3 (dB)typical change, 50 matings |
Connector Termination |
Insertion Loss (dB) | ≤0.2 | ≤0.2 |
Return Loss (dB) | PC≥55; APC≥60 | PC≥25 |
Wavelength (nm) | 1310/1550 | 850/1300 |
Durability | ≤0.2(dB)typical change, 500 matings |
