Description
MTP®/MPO harness cables are a kind of MTP®/MPO fanout harness cable or breakout cable assembly with one MTP®/MPO connector on one end and multiple single-fiber connectors (LC, SC, FC, etc.) on the other end, designed for data distribution and routing to patch panels. It is used to transition from trunk backbone assemblies to fiber rack systems. The MTP® harness cable is fully configurable, available with a variety of cable and connector combinations. For the hardware and equipment in the same cabinet, the longer MPO cord can provide flexibility at any location, and the branch MTP®/MPO cable can be winded into the vertical cable organizer.

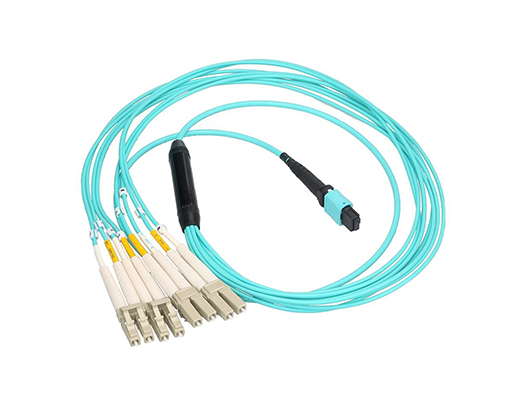

Product Show
Features
Our MPO/MTP harness cable is with low loss performance.
MPO / MTP in 8/12/16/24/32 fibers interfaces for choices.
This MTP/MPO fanout harness cable is available in OS1, OS2, G.657A2, OM3, OM4 Fiber Grades – OM1 and OM2 available upon request.
Option for LSZH, OFNP or OFNR cable jacket.
100% factory terminated and tested.
Pulling eyes are provided as an option to protect the fiber ends during installation.
Save installation and reconfiguration time.
Applications
MPO-LC harness cables are dedicated for direct connection between MPO trunk cables and equipment with SFP+ ports via an MPO adapter.
MPO-LC harness cables are compatible with all other MPO module cassette-based systems without any loss of optical performance.
MPO-LC harness cable is typically constructed with a mini cable that features by small diameter, low weight, and low bend radius. In a typical scenario, it’s used to make connections within the same rack or go-between adjacent racks via overhead cabling trays, slots or open ducting systems.
Data Center Interconnect
High-Density Fiber Management
Telecommunication Networks and CATV networks
LAN/WAN Premises
Standards Compliance
TIA/EIA-568.3-D and ISO/IEC 11801;
IEC-61754 & EIA/TIA-604-5;
NFPA 262 or IEC 60332;
EN 50575;
Our MPO/MTP harness cable complies with GR-1435-CORE, GR-2866-CORE, GR-326-CORE;
Our 100g harness cable is compliant to Directive 2002/95/EC (RoHS) and REACH SvHC.
TECNICAL DRAWINGS
Specifications
Construction | Description |
Fiber Count | 8-288 Fibers |
Fiber Mode | Single mode: OS2/G657 9/125um Multimode: OM4 50/125um, OM3 50/125um |
Fiber Brand | SMF-28® Ultra optical fiber Corning ClearCurve® multimode fiber |
Cable Jacket Ratings | Riser (OFNR) Plenum (OFNP) Low Smoke Zero Halogen (LSZH) |
Cable Jacket Color | OS2/G657: Yellow OM3: Aqua; OM4: Aqua/Magenta or Customized |
Polarity | A/B/C or Customized |
MTP/MPO | Ferrule | 12F/16F/ 24F/32F |
Ferrule Brand | US Conec, HANKUSAN, Nissin |
Connector Type | MTP Female, Male; MPO Female, Male |
Connector Brand | US Conec MTP, Senko MPO, Nissin MPO, Sanwa MPO, FURUKAWA MPO |
Connector Color | Ferrule | SM(APC) | SM(PC) | OM3 | OM4 |
Low loss | Yellow | Yellow | Aqua | Magenta |
Standard | Green | Blue | Aqua | Magenta |
Boot Color | Green/Black/ or Customized |
Single-fiber connector | LC, SC, FC, etc. |
Operating Temperature | -20°C to +70°C |
Storage Temperature | -40°C to +85°C |

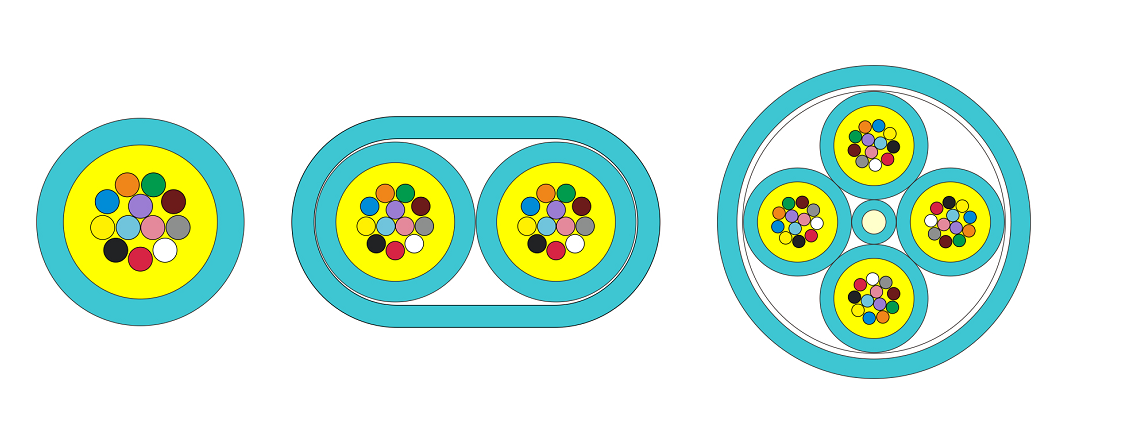

Typical Cable Structure
Fiber Count | OD(mm) | Nominal | Max.Tension(N) | Max.Crushing Resistance(N/100mm) |
Weight (kg/km) | Short Term | Long Term | Short Term | Long Term |
12 | 3.0±0.1 | 8.1 | 150 | 80 | 500 | 150 |
24 | 3.0±0.1 | 8.5 | 160 | 80 | 500 | 150 |
24 | 9.0±0.5 | 72 | 500 | 180 | 1000 | 300 |
36 | 9.0±0.5 | 78 | 500 | 180 | 1000 | 300 |
48 | 9.0±0.5 | 79 | 600 | 200 | 1000 | 300 |
60~72 | 11.2±0.5 | 126 | 1000 | 300 | 1000 | 300 |
96 | 13.5±0.5 | 178 | 1000 | 300 | 1000 | 300 |
144 | 17.5±0.5 | 285 | 1000 | 300 | 1000 | 300 |
Pulling Elements of MTP®/MPO Harness Cord
Spool Packaging of MTP®/MPO Harness Cable
