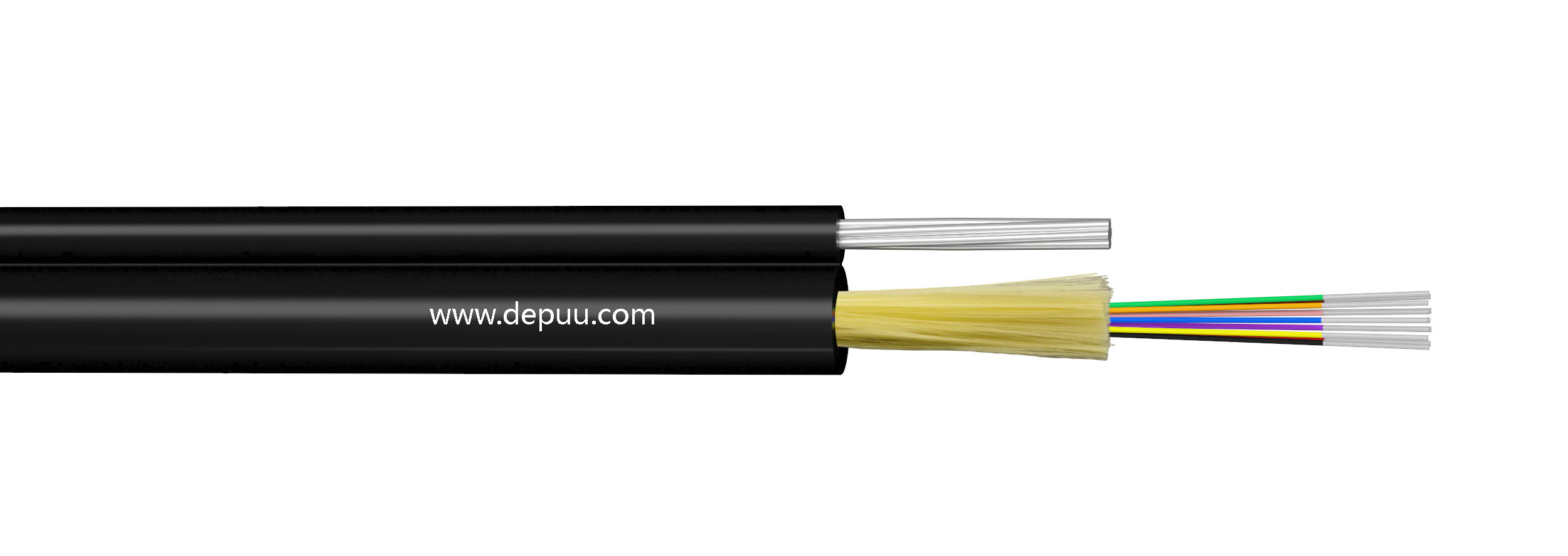

Self-Supported Round Drop Cable (GJYC8H)

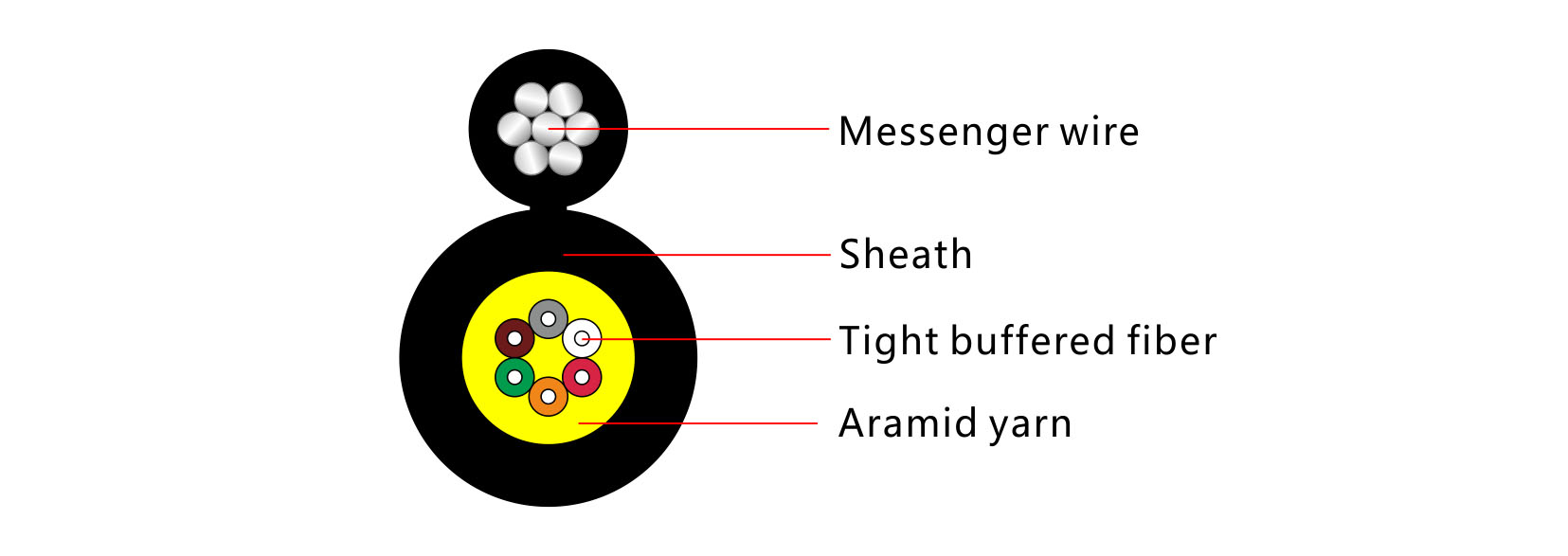

Structure Design

Description

GJYC8H Fig 8 Tight Buffer drop cable is designed especially for aerial installations. Figure 8 tight buffer design With fiber counts up to 12 fibers.

Applications

1. Used in access network or as access cable from outdoor to indoor in customer premises ;

2. Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling where on-site direct connections are the prefer termination technique.

Features

Good UV and flame resistant. Compact, soft, flexible, easy to install. Fig8 self-supporting design.

Optical Characteristics

Fiber Type			Overfilled Launch Bandwidth	Effective Modal Bandwidth	10Gb/s Ethernet link length	Min Bending Radius
Fiber Type	Attenuation		Overfilled Launch Bandwidth	Effective Modal Bandwidth	10Gb/s Ethernet link length	Min Bending Radius
Conditions	1310/1550nm	850/1300nm	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22					16
G657A1	0.36/0.22					10
G657A2	0.36/0.22					7.5

Structure and Technical Specifications

	Nominal Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Long Term	Short Term	Long Term	Short Term
1~4	6.0×3.0	27	300	800	500	1000
>4	Available upon customer’s request

Package
