Our Products

DEPUU is committed to providing customers with reliable quality products and the most competitive

prices in the world, which is also our core advantage to maintain high-speed development.


Categroy

1x2 SC/UPC ABS Module Fiber Optic PLC Splitters

Product Show

Applications

FTTX Systems / CATV Networks


Feature

Low Insertion Loss,Low PDL(Polarization Dependent Loss)

Compact Design

Exceptional Reliability and Stability

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -20°C to 70°C

Conformed to RoHS


Specifications


Specifications
Port Configuration1x21x31x41X61x81X121x161x321x64
Insertion Loss (dB)4.16.57.51010.812.913.81721.4
Loss Uniformity (dB)0.60.60.60.60.811.21.51.5
Polarization Dependent Loss(dB)0.20.20.20.20.20.20.250.30.4
Wavelength Dependent Loss(dB)0.30.30.30.30.30.30.50.50.5
Temperature Dependent Loss  (dB)0.40.40.40.40.40.40.50.50.5
Return Loss (dB)UPC ≥50;APC≥55
Directivity (dB)≥ 55
Operating Wavelength (nm)1260~1650
Fiber TypeG657A1 or customer specified
Operating Temperature-40~+85
Storage Temperature-40~+85

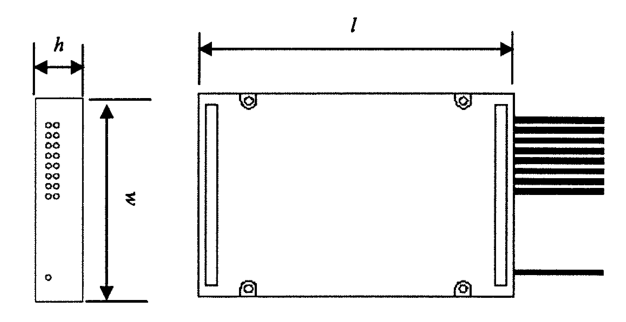

Profile Size
1x2;1x3;1x490x20x10mmLxWxH
1x2;1x3;1x4;1x6;1x8;1x12;1x16100x80x10mmLxWxH
1x16;1X32120x80x18mmLxWxH))
1X64141x115x18mmLxWxH
