1x16 SC/UPC Casette Fiber Optic PLC Splitters

Product Show

Applications

FTTX Systems / CATV Networks

Feature

Low Insertion Loss，Low PDL(Polarization Dependent Loss)

Compact Design

Exceptional Reliability and Stability

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -20°C to 70°C

Conformed to RoHS

Specifications

Specifications
Port Configuration	1x2	1x3	1x4	1X6	1x8	1X12	1x16	1x32	1x64
Insertion Loss (dB)	4.1	6.5	7.5	10	10.8	12.9	13.8	17	21.4
Loss Uniformity (dB)	0.6	0.6	0.6	0.6	0.8	1	1.2	1.5	1.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.2	0.2	0.2	0.25	0.3	0.4
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Dependent Loss (dB)	0.4	0.4	0.4	0.4	0.4	0.4	0.5	0.5	0.5
Return Loss (dB)	UPC ≥50；APC≥55
Directivity (dB)	≥ 55
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A1 or customer specified
Operating Temperature	-40~+85
Storage Temperature	-40~+85

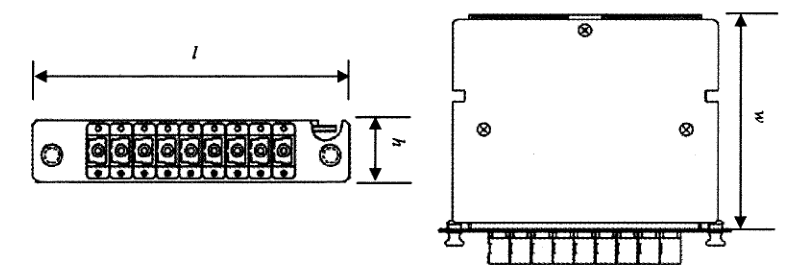

Profile Size
1x2;1x3;1x4;1x6;1x8	100x25x130mm（WxHxL）
1x12;1x16	100x50x130mm（WxHxL）
1X32	100x102x130mm（WxHxL）
1X64	100x200x130mm（WxHxL）
