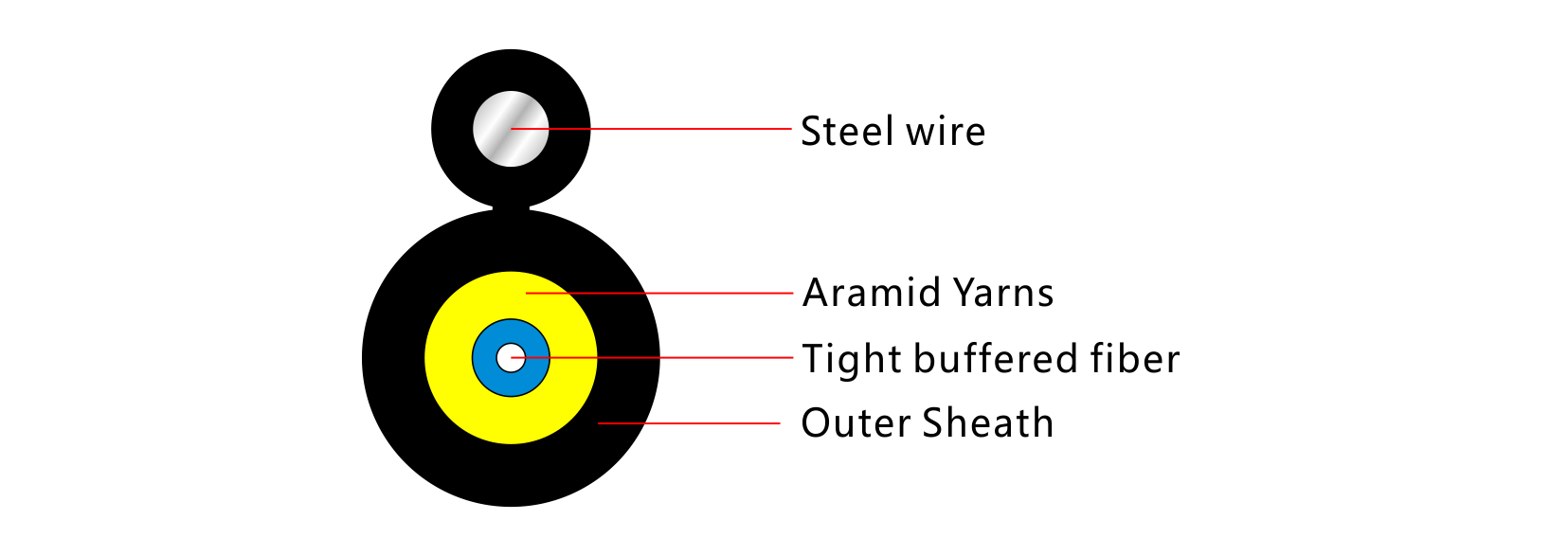

Structure Design
Description
Compact and light weight, low purchasing and construction costs;Easy connect without splicing, fast and convenient; Excellent tensile and crush performance, the span distance forself-support type can be up to 50 meters;Flame retardant LSZH jacket meets relevant fire protection requirements in indoor environment; High carbon steel messenger wire enables the self-support type to have excellent tensile strength.
Product Details
Fiber: Up to 4, tight buffered fiber
Fiber Types: Single-mode or multimode
Cable Types: Round drop cable
Strength Member:Aramid yarn
Sheath Options: Single LSZH sheath
Operating Temperature: -20℃~+70℃
Compliances: In Accordance with IEC,
ITU and EIA standards
Features
Compact and light weight, low purchasing and construction costs;
Easy connect without splicing, fast and convenient;
Excellent tensile and crush performance, the span distance forself-support type can be up to 50 meters;
Flame retardant LSZH jacket meets relevant fire protection requirements in indoor environment;
High carbon steel messenger wire enables the self-support type to have excellent tensile strength.
Applications
Fiber Transmision Performance
| Cabled Optical fiber | 62.5µm(850nm/1300nm) | 50µm(850nm/1300nm) | G.652(1310nm/1550nm) | G.657(1310nm/1550nm) |
| Max attenuation(dB/km) | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 | 0.4/0.3 |
| Typical value(dB/km) | 3.0/1.0 | 3.0/1.0 | 0.36/0.22 | 0.36/0.22 |
Technical Specification
| Cable type | Fibercounts | Cablediameter(mm) | Tensile Strength(N) | Crush Resistance(N/100mm) | Minimum bend radius(mm) |
| Short term | Long term | Short term | Long term | Dynamic | Static |
| GJFJH | 1 | 2.5 | 150 | 80 | 1000 | 500 | 20D | 10D |
| GJYFJH | 1 | 3.0 | 300 | 150 | 1000 | 500 | 20D | 10D |
| GJYFJCH | 2 | 3.5×6.3 | 600 | 300 | 1000 | 500 | 20D | 10D |
| GJYFJCH | 4 | 3.7×6.5 | 600 | 300 | 1000 | 500 | 20D | 10D |
