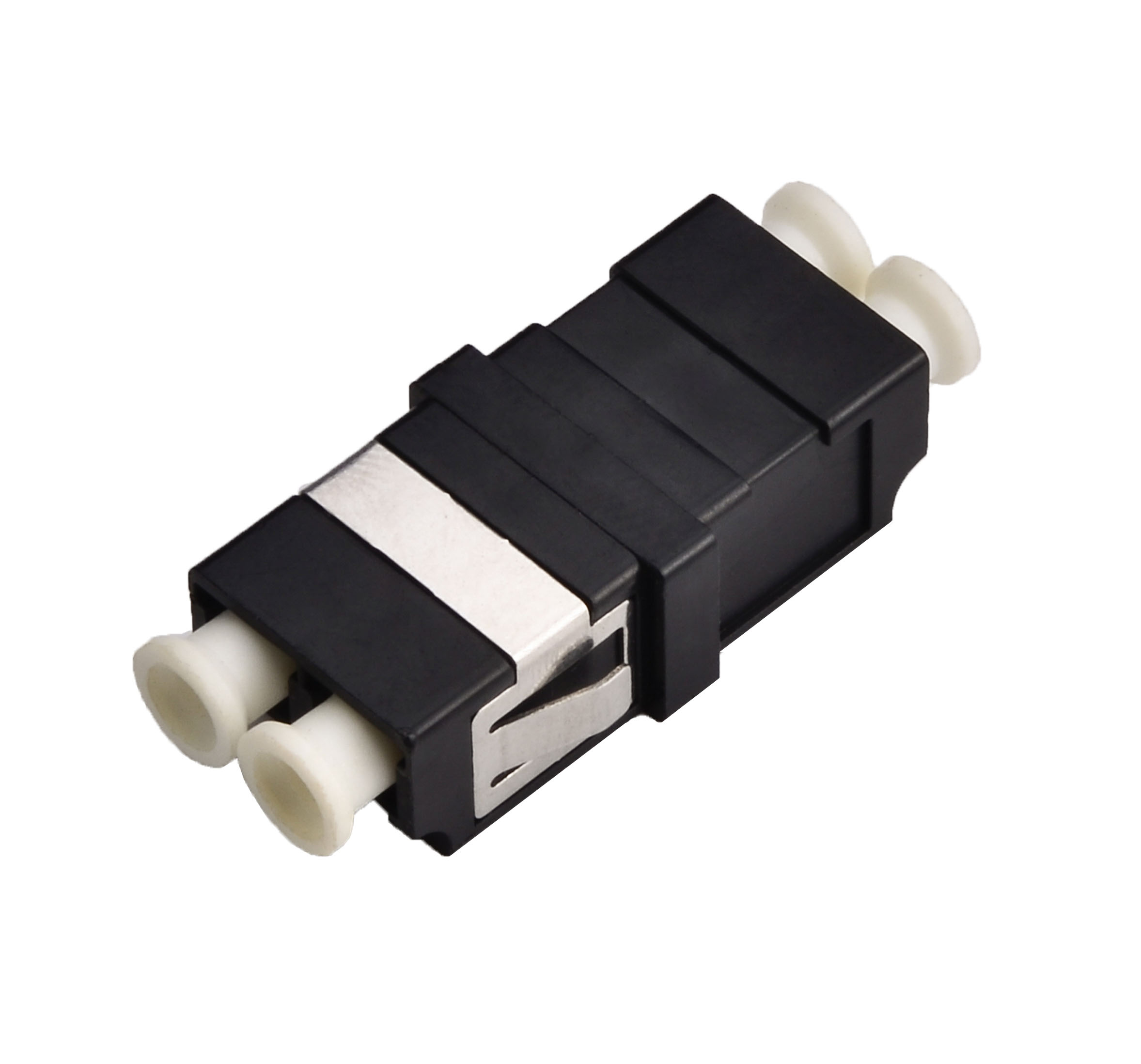

Product Show
Applications
l FTTX Systems
l LAN, WAN and Metro Networks
l Analog/Digital Passive Optical Networks
l CATV Networks
l Other applications in fiber optic systems
Feature
Low insertion loss,Low PDL (Polarization Dependent Loss)
Excellent Temperature stability
Compact Design
Environment protection (ROHS Compliance)
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -20°C to 70°C
Specification
| Specifications |
|
| Insertion loss (dB) | ≤0.2 |
| Repetitiveness (dB) | ≤0.1 |
| Interchangeability (dB) | ≤0.2 |
| Plug times | >500 |
| Tensile strength（g） | 200~600 |
| Operating Temperature（℃） | -40~+85 |
Packing
| Packing |
|
| Simplex | 2000pcs/carton |
| Duplex | 1000pcs/carton |
| Weight | 8.5kg |
| Carton Dimension | 470x310x210mm |
