Fiber Optic Adapter SC UPC Duplex

Product Show

Applications

l FTTX Systems

l LAN, WAN and Metro Networks

l Analog/Digital Passive Optical Networks

l CATV Networks

l Other applications in fiber optic systems


Feature

Low insertion loss,Low PDL (Polarization Dependent Loss)

Excellent Temperature stability

Compact Design

Environment protection (ROHS Compliance)

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -20°C to 70°C

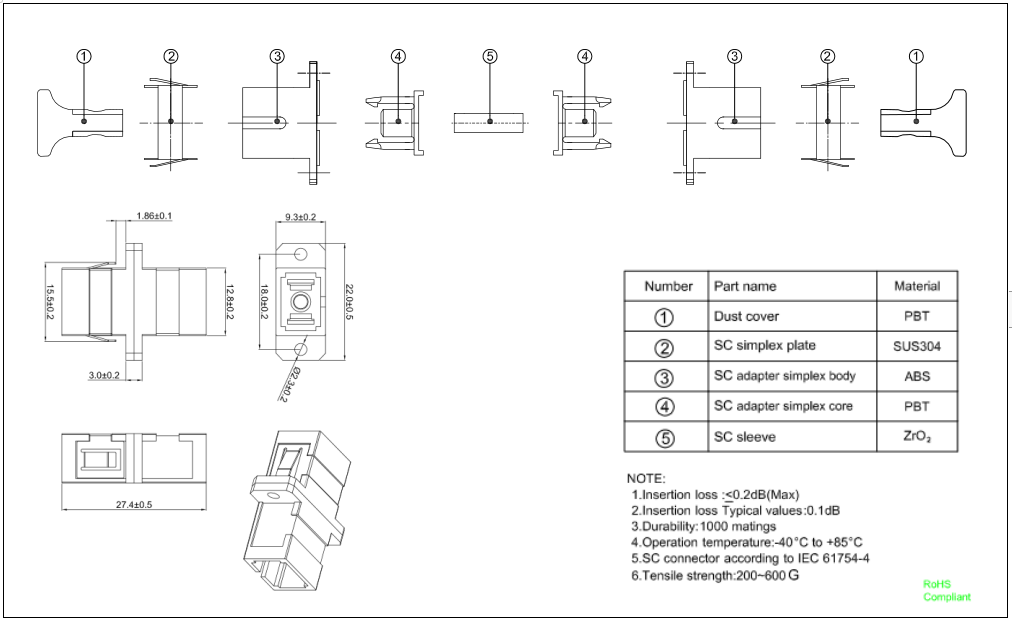

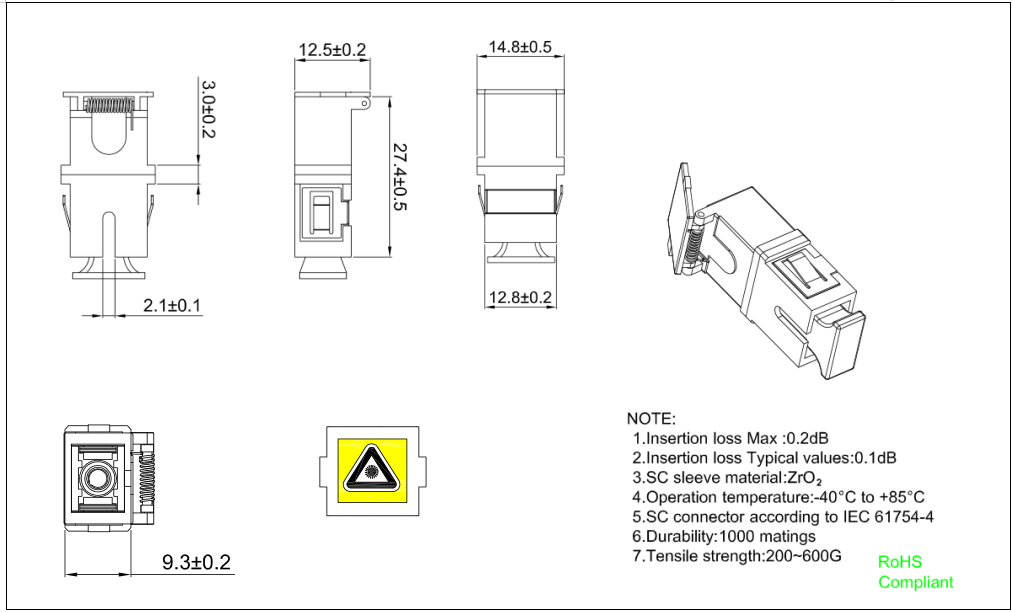

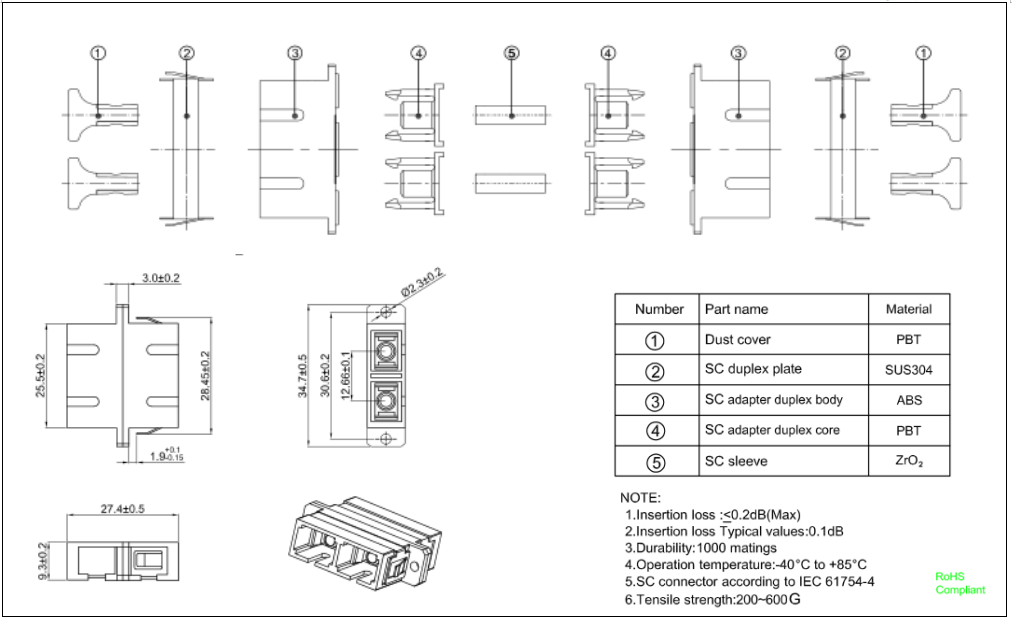

Specification


Specifications
Insertion loss (dB)≤0.2
Repetitiveness (dB)≤0.1
Interchangeability (dB)≤0.2
Plug times>500
Tensile strengthg200~600
Operating Temperature(℃)-40~+85

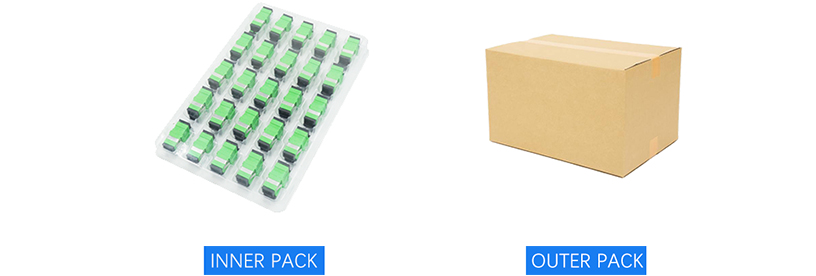

Packing
Simplex2000pcs/carton
Duplex1000pcs/carton
Weight8.5kg
Carton Dimension470x310x210mm



Packing


Packing Type1-2cores:2000pcs/carton
4core:1000pcs/carton
Packing materialplastic box
Carton Dimension (HxWxD)210x310x470mm
Weight10Kg
