Fiber Optic Fast Connector

Product Show

Applications

1.FTTX Systems

2.LAN, WAN and Metro Networks

3.Analog/Digital Passive Optical Networks

4.CATV Networks

Feature

Low Insertion Loss，Low PDL(Polarization Dependent Loss)

Compact Design

Exceptional Reliability and Stability

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -20°C to 70°C

Conformed to RoHS

Specification

Optical Cable	3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable
Plug Type	SC/APC；SC/UPC
Insertion Loss (dB)	﹤0.5dB(0.2dB typical)
Return Loss (dB)	SC/APC≥55dB；SC/UPC≥45dB
Tensile Strength	﹥50N
Thermal Shock	ΔIL﹤0.3dB ； ΔRL﹤5dB
Reusable Time	≥10 times
Operating &Storage Temperature	-40~+85

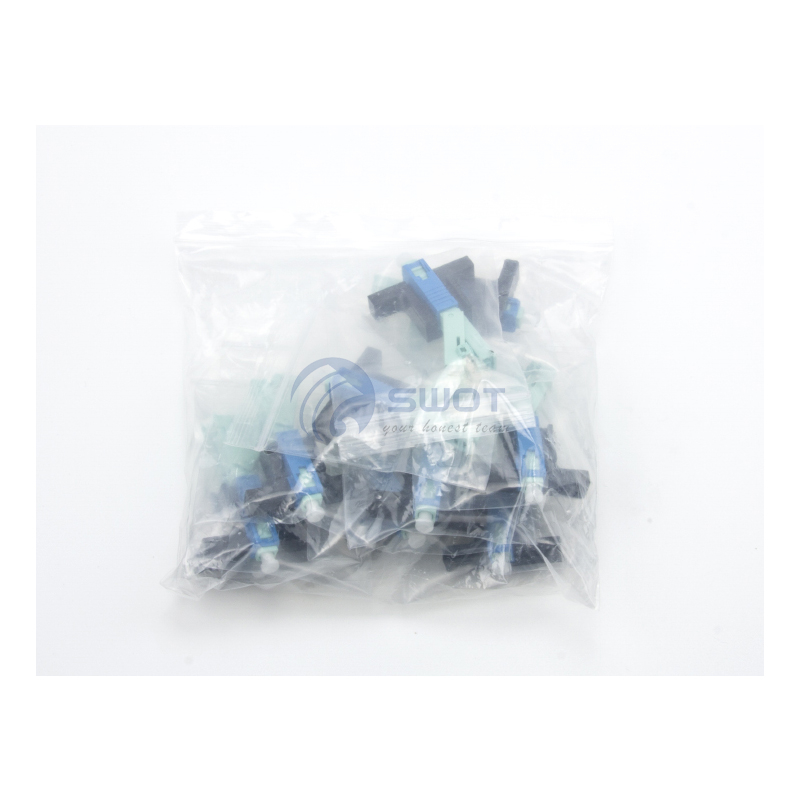

Packing
