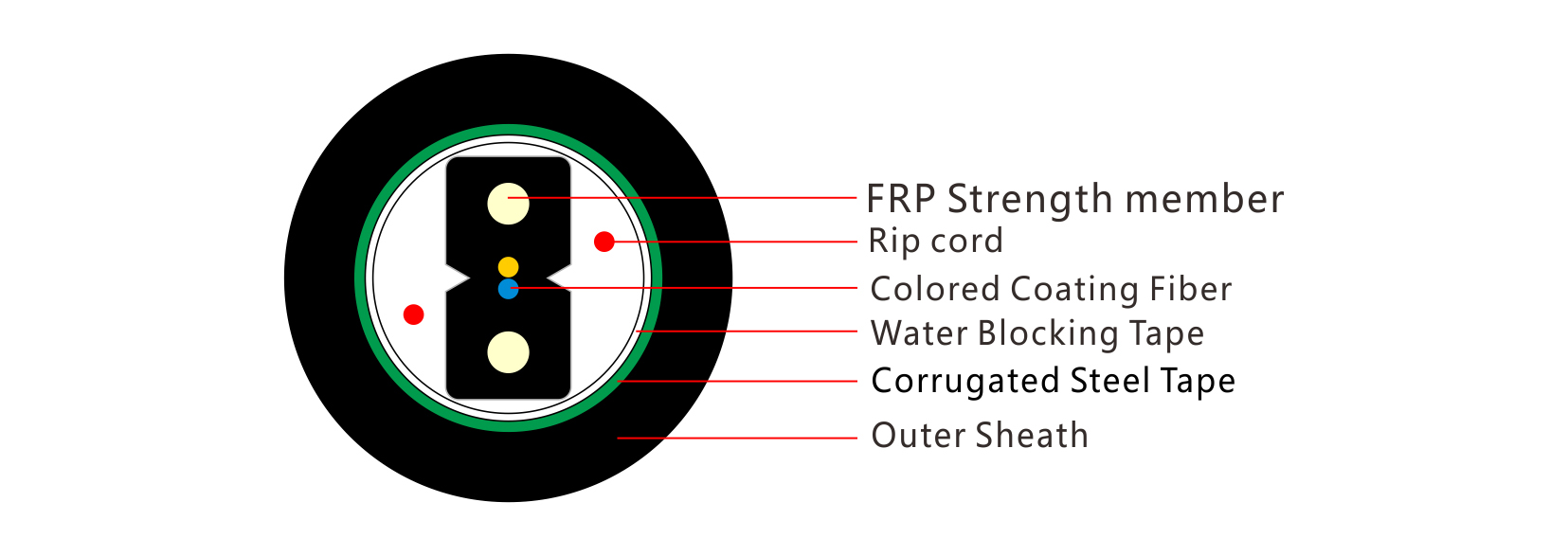

Structure Design
Description

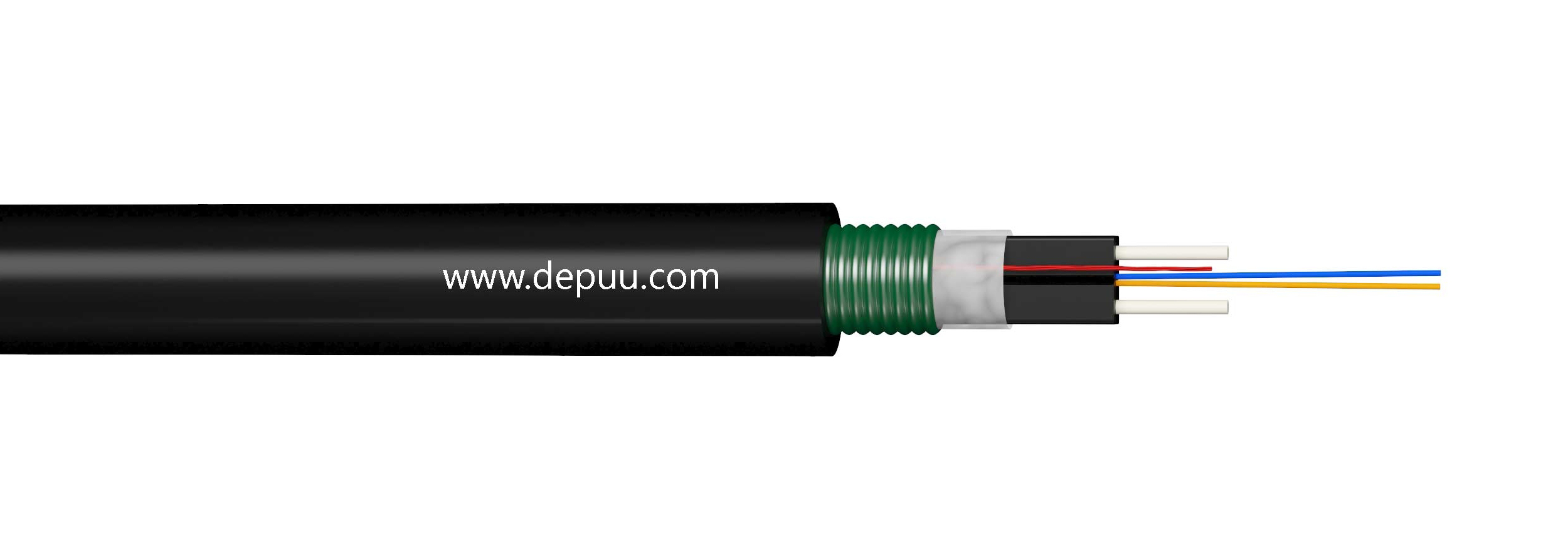

Duct FTTH Cable is made to connect between user end equipment with outside optical fiber cables, this cable features 2 parallel KFRP
strengthen member providing ensure good performance of crush resistance, tensile strength, the duct FTTH cable is made with waterproof
tape and AL-Plastic tape, the PE outside jacket make it strong and robust enough for outdoor use, as well as the flame-retardant ability. Duct
FTTH cable jacket is environmental friendly- Low smoke, zero halogen, the whole cable is soft and flexible, good bending performance,
suitable for duct FTTH cable deployment.
Duct FTTH Cables Features and Applications
Environmental friendly Low smoke, zero halogen and flame-retardant cable sheath.
Special bend insensitive fiber provides high bandwidth and excellent communication transmission quality.
Suitable for FTTH duct access cabling.
Soft and flexible, good bending performance, easy to handle.
Two KFRP strengthen members ensure good performance of crush resistance, tensile strength to protect the optical fiber.
AL-plastic tape enable the cable crush resistant and moisture proof.
Duct FTTH Cables Applications
Used in FTTH duct access cabling between users and outside feeder cables
Deployment in small bending environment
Used for both indoor and outdoor
Duct FTTH Cables Specifications
1. Cable core numbers: 1 or 2
2. Cable diameter: 7mm
3. Cable weight: 52KGs/Km
4. Tensile Load(N): 60
5. Crush Load (N/100mm): 30
6. Bend Radius (mm):1000
7. Fiber type: G652d /G657
package
